Samples available for testing, standard MOQ is 100 pieces, delivery time is 15-20 days.
Detailed Gallery:
Manufacturing Capabilities & Overview
Established in 2003, committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields.
Core Production Capabilities:
Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Products Size Range: Diameter: 4-100mm
DC Voltage Range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
Speed Range: 1 RPM - 30,000RPM
Stall Torque: 1g.cm - 30kg.cm
Applications: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment.
Frequently Asked Questions (FAQ)
What is the standard voltage range for the DGA12-N20 gear motor?
The DGA12-N20 gear motor operates at a rated voltage of 3V, but it can be custom configured to operate within a DC voltage range of 1.5V to 12V depending on application requirements.
What reduction ratios are available for this 12mm micro gear motor?
We offer various reduction ratios for flexibility in torque and speed requirements, including 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000.
Can this motor be equipped with feedback options?

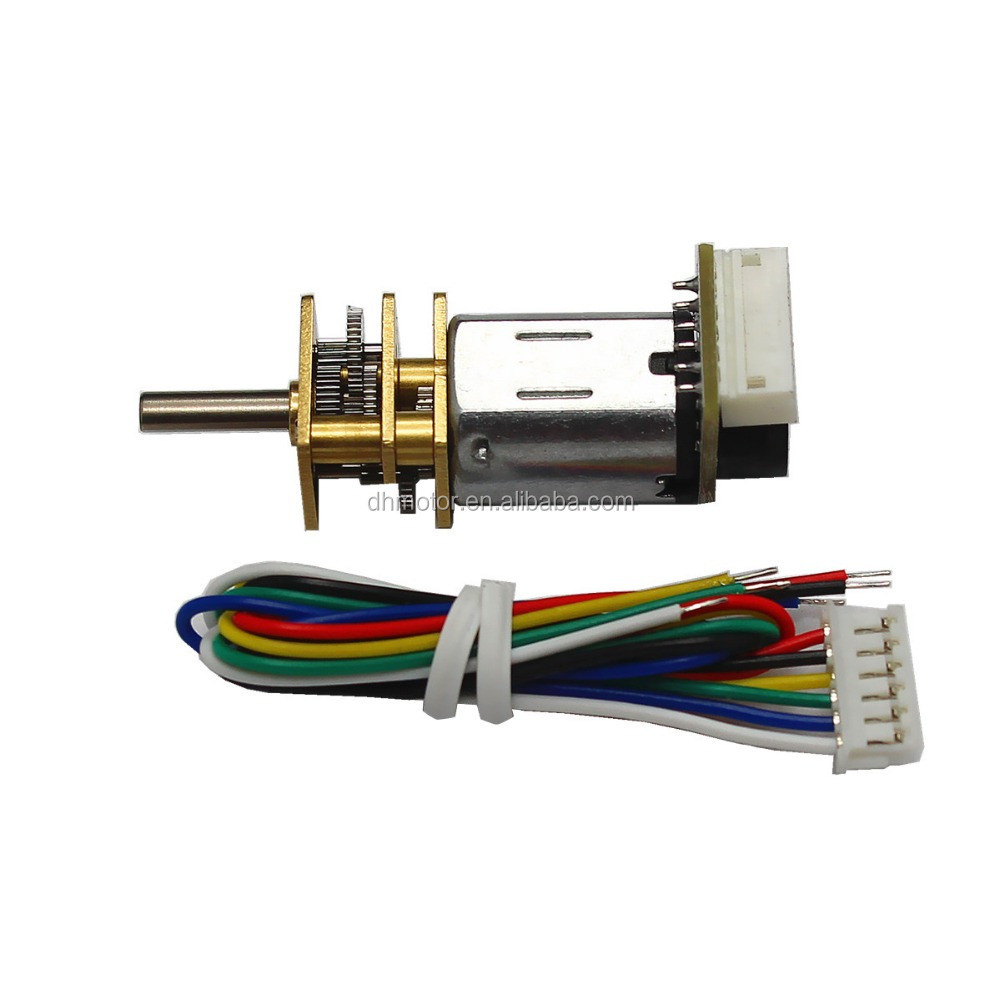

Yes, this 12mm DC gear motor can be equipped with an encoder for applications requiring precise position and speed control.
What are the primary applications of this micro motor?
It is widely used in robots, electronic locks, automatic shutters, USB fans, currency counting machines, slot machines, medical equipment, automatic doors, and various household and office appliances.
What is the MOQ and delivery time for orders?
The minimum order quantity (MOQ) is 100 pieces. We can provide testing samples first, with sample delivery taking 15-20 days, and batch orders delivered within 25 days.
What are the packaging specifications for shipping?
The standard packaging consists of 80 pieces per tray, and 1,200 pieces per carton. The standard carton dimension is 11 * 9 * 6.75 inches.
