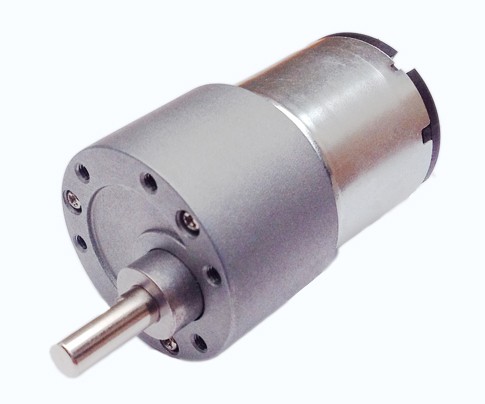

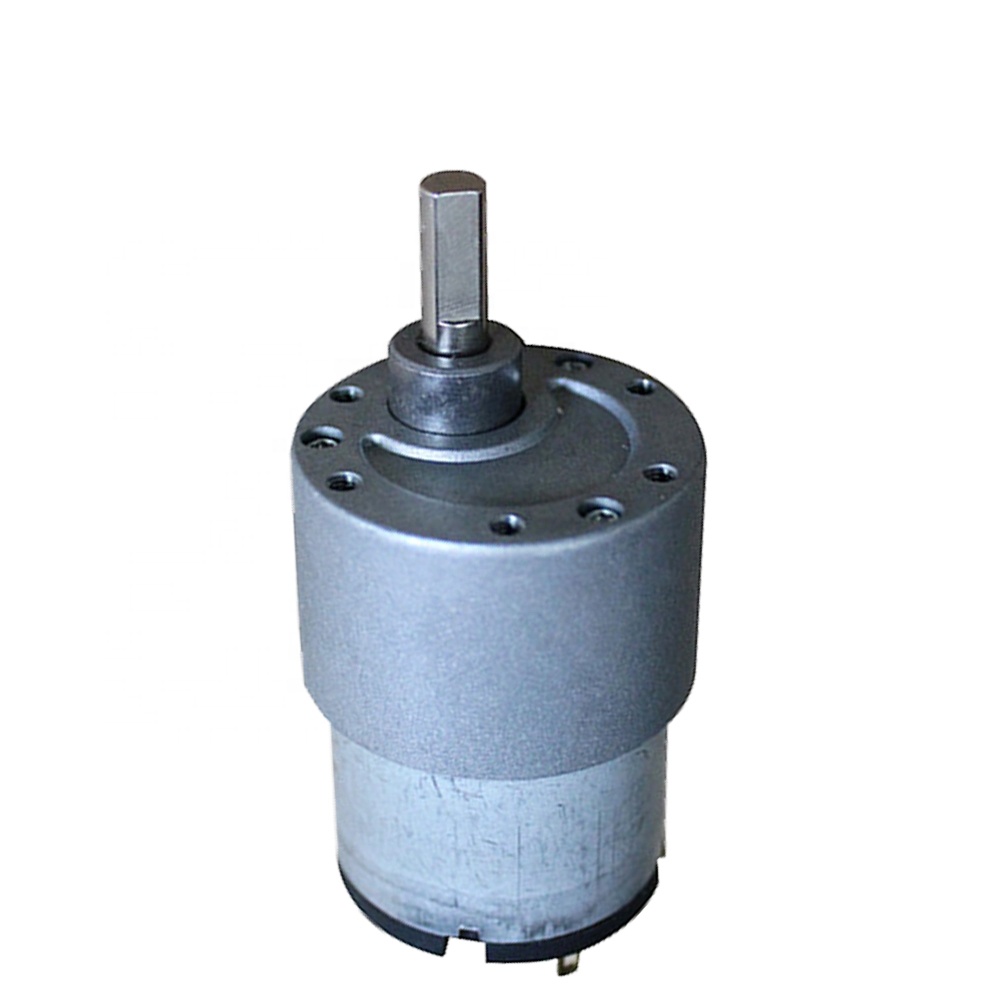

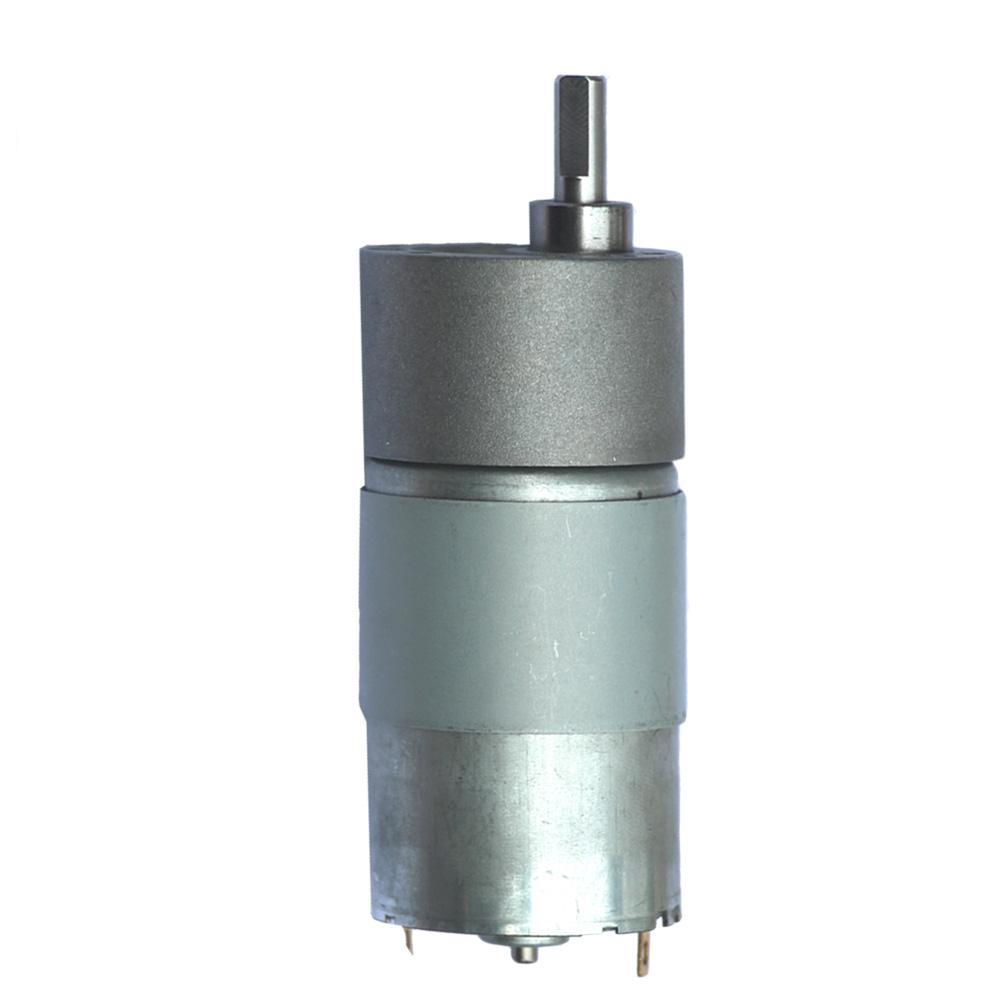

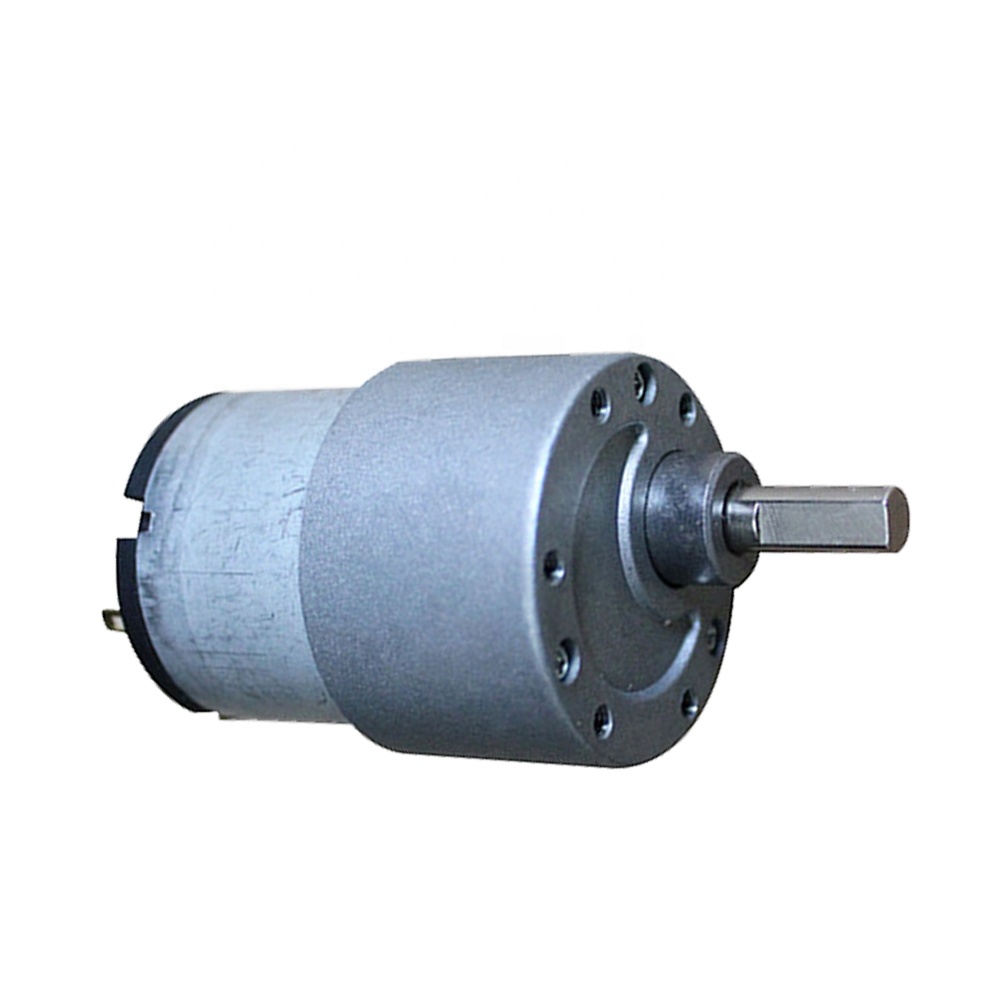

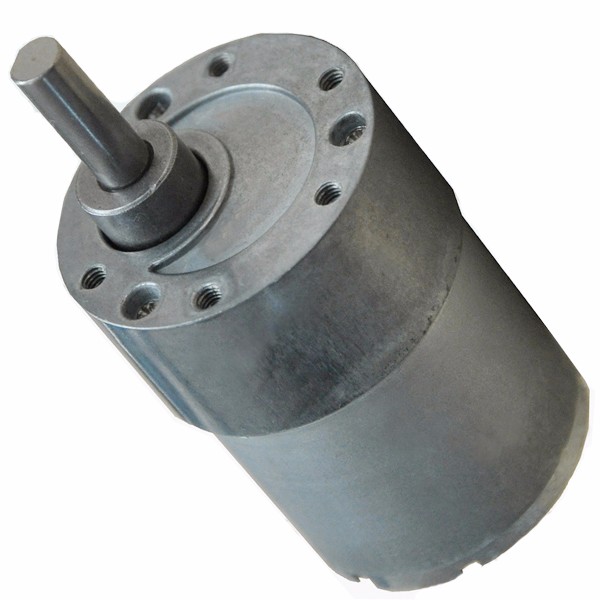

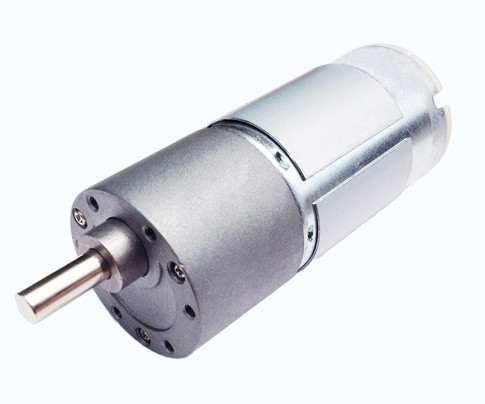

37mm Gear Motor 500 520 540 550 555 Gear Motor with Reduction Gearbox 37mm 12v 24v Dc Gear Motor 10rpm 30rpm

1 / 5

37mm Gear Motor 500 520 540 550 555 Gear Motor with Reduction Gearbox 37mm 12v 24v Dc Gear Motor 10rpm 30rpm

Send Inquiry

Product Description

Place of Origin	Guangdong China (Mainland)	Model Number	DGB37-528
Usage	Home Appliance	Certification	ROHS
Type	Gear Motor	Torque	6.0kg.cm
Construction	Permanent Magnet	Commutation	Brush
Protect Feature	Drip-proof	Speed(RPM)	19rpm
Continuous Current	0.32A	Output Power	2.6
Voltage(V)	12V	Efficiency	IE 2
No Load Speed	23rpm

Packaging & Shipping

Packaging Details	100PCS/CTN, NET WEIGHT: 19 KG, GROSS WEIGHT: 20.5KG
Delivery Detail	Within 25 days

Technical Specifications

Micro DC Motor, DC Gear Motor, DC Brushless Motor

Key Features:

Gearbox diameter: 37mm
Metal / carbon brush DC motor
Low noise, high quality, and high torque
Direction: CW & CCW
Certificate: CE, ROHS, ISO
Customizable: Motor specifications and shaft length can be tailored to requirements

Compatible Motor Models:

RF-520, RF-528, RS-540, RS-545, RS-550, RS-555, RS-3530

Product Display

Production & Capabilities

Main Products: Dia 4~100mm DC Micro Motor, Coreless Brushless motor, Gear Motor, Vibration motor, etc.
Voltage Range: 1.5V - 42V (AC rectify: 100V-240V)
Speed Range: 1 RPM - 30,000 RPM
Stall Torque: 1g.cm - 30kg.cm
Applications: Household appliances, power tools, medical equipment, office automation, automotive, and more.

Frequently Asked Questions

Q1: Can the motor specifications be customized? A: Yes, motor specifications and shaft lengths can be tailor-made according to specific customer requirements.

Q2: What is the typical delivery time for an order? A: The standard delivery detail is within 25 days after order confirmation.

Q3: Are these gear motors reversible? A: Yes, these motors support both CW (Clockwise) and CCW (Counter-Clockwise) directions.

Q4: What certifications do your products hold? A: Our products are certified with CE, ROHS, and are manufactured under ISO quality standards.

Q5: What are the main applications for the 37mm gear motor? A: They are widely used in home appliances, office automation, medical equipment, power tools, and automotive fields.

Q6: What is the voltage range available for these DC motors? A: We offer a DC voltage range from 1.5V to 42V, and AC rectification options for 100V to 240V.
