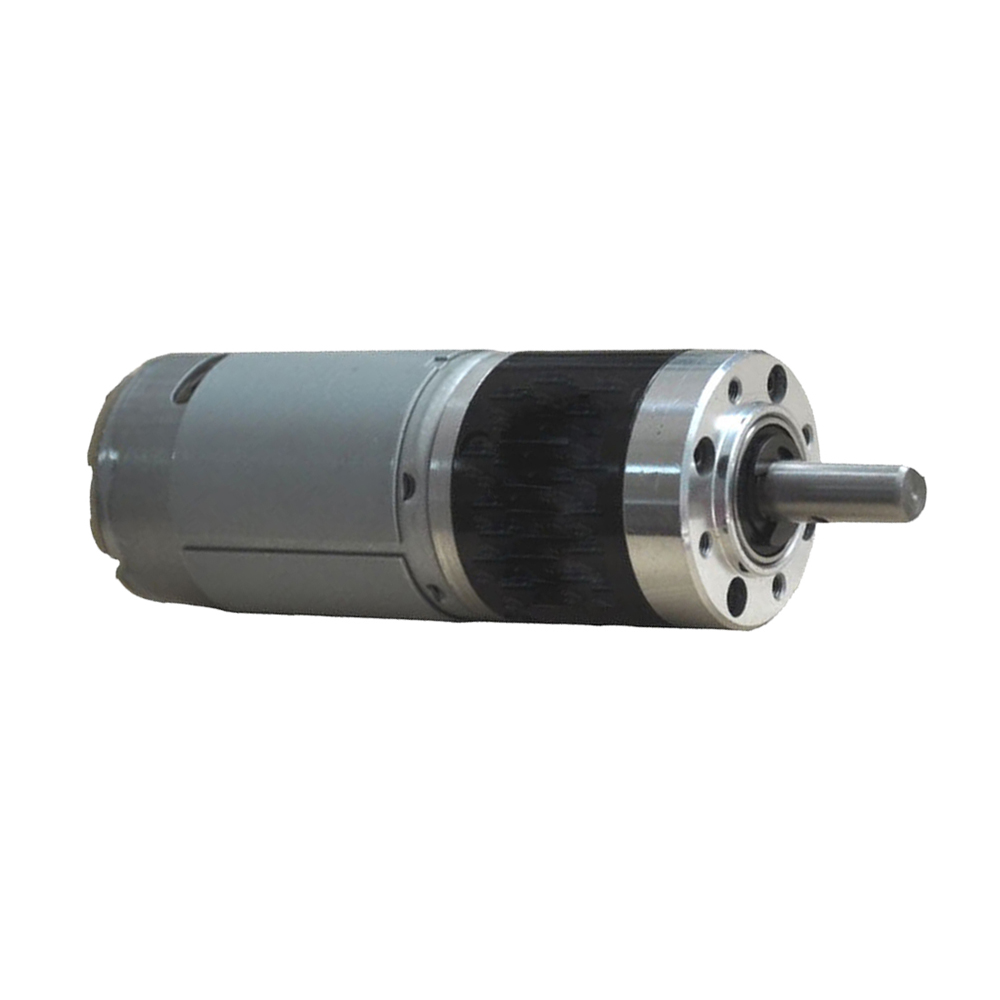

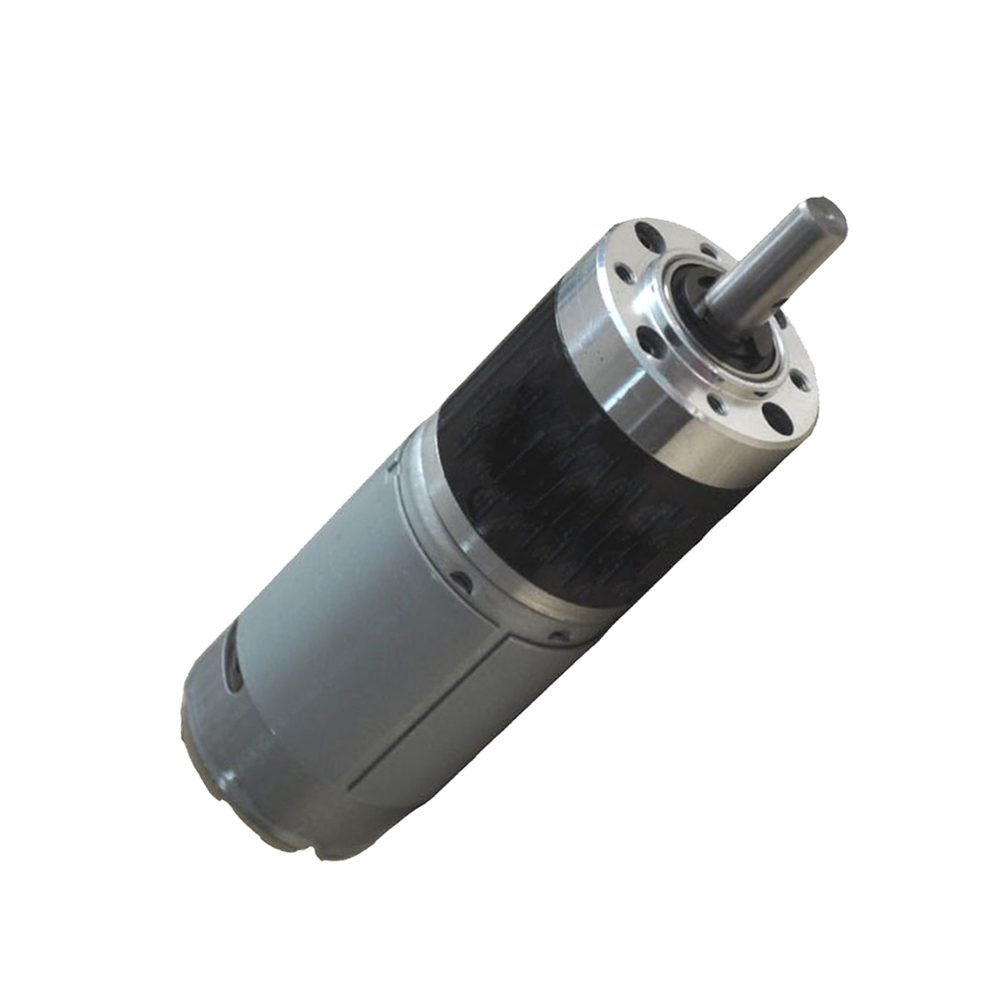

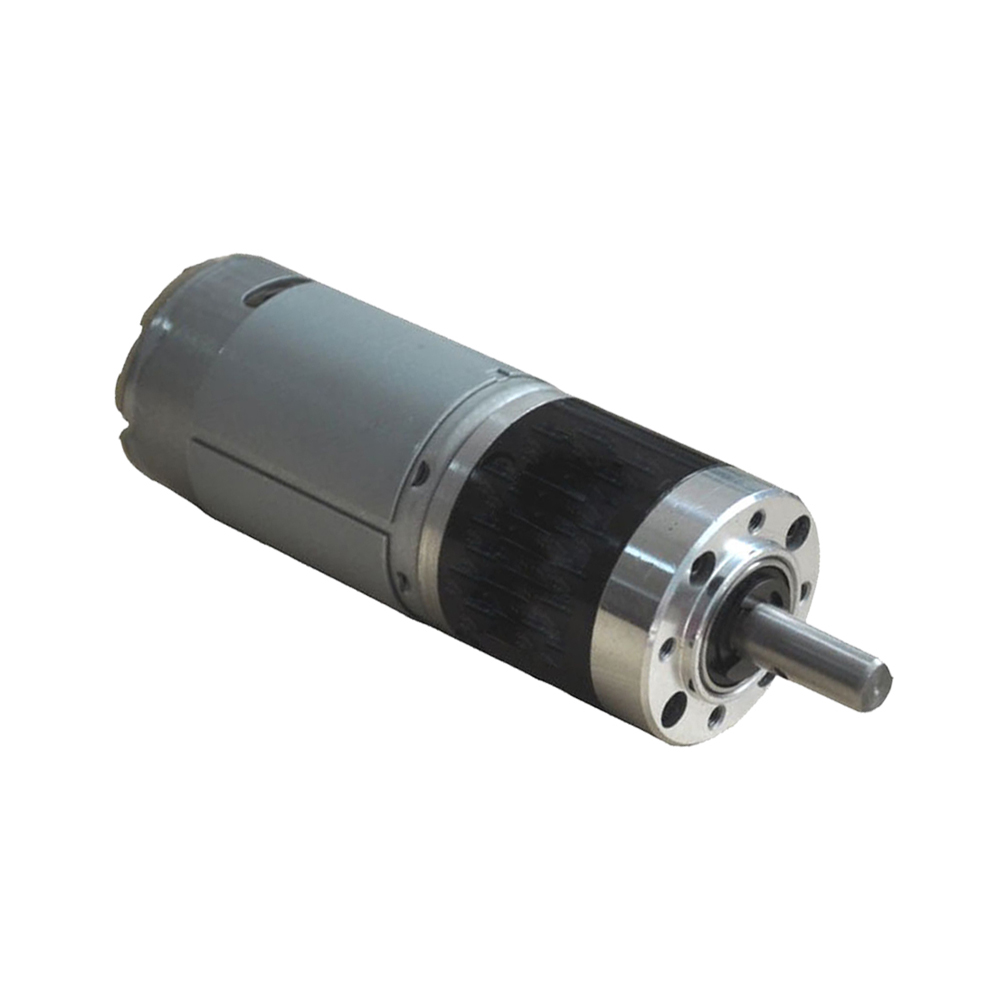

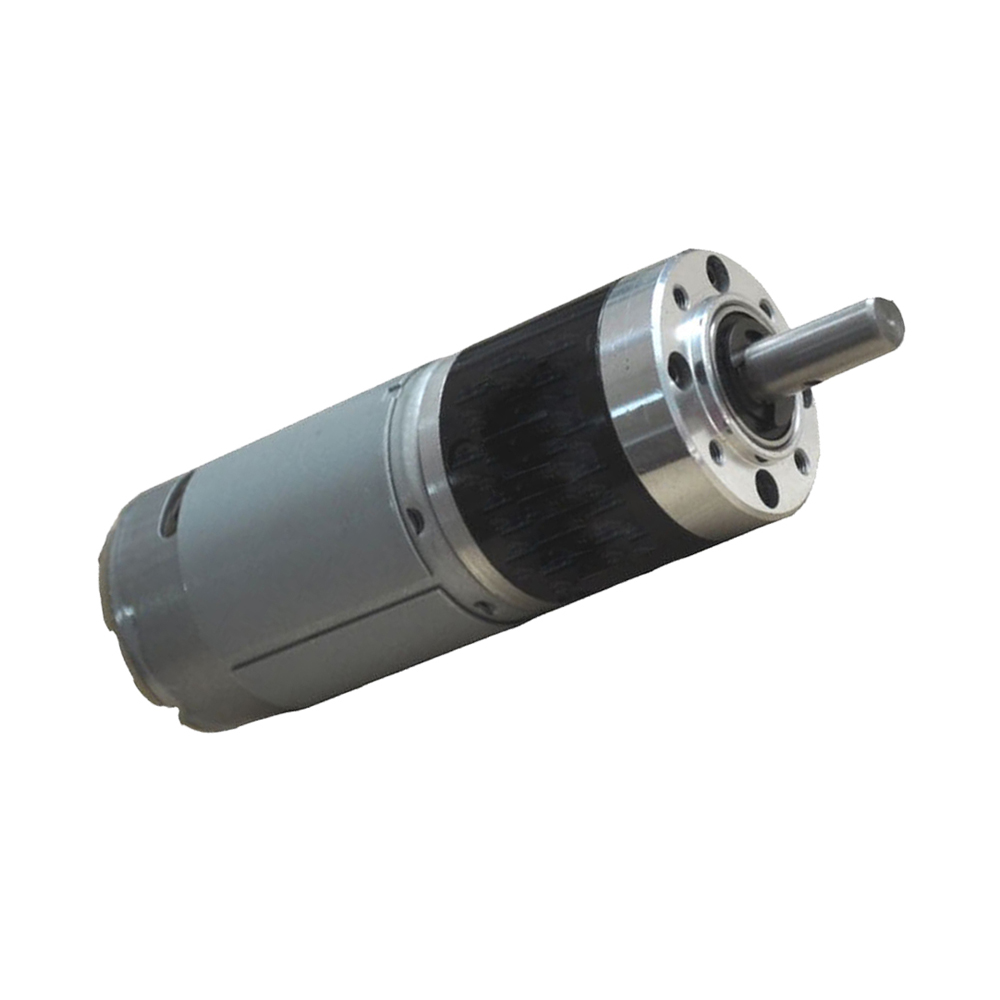

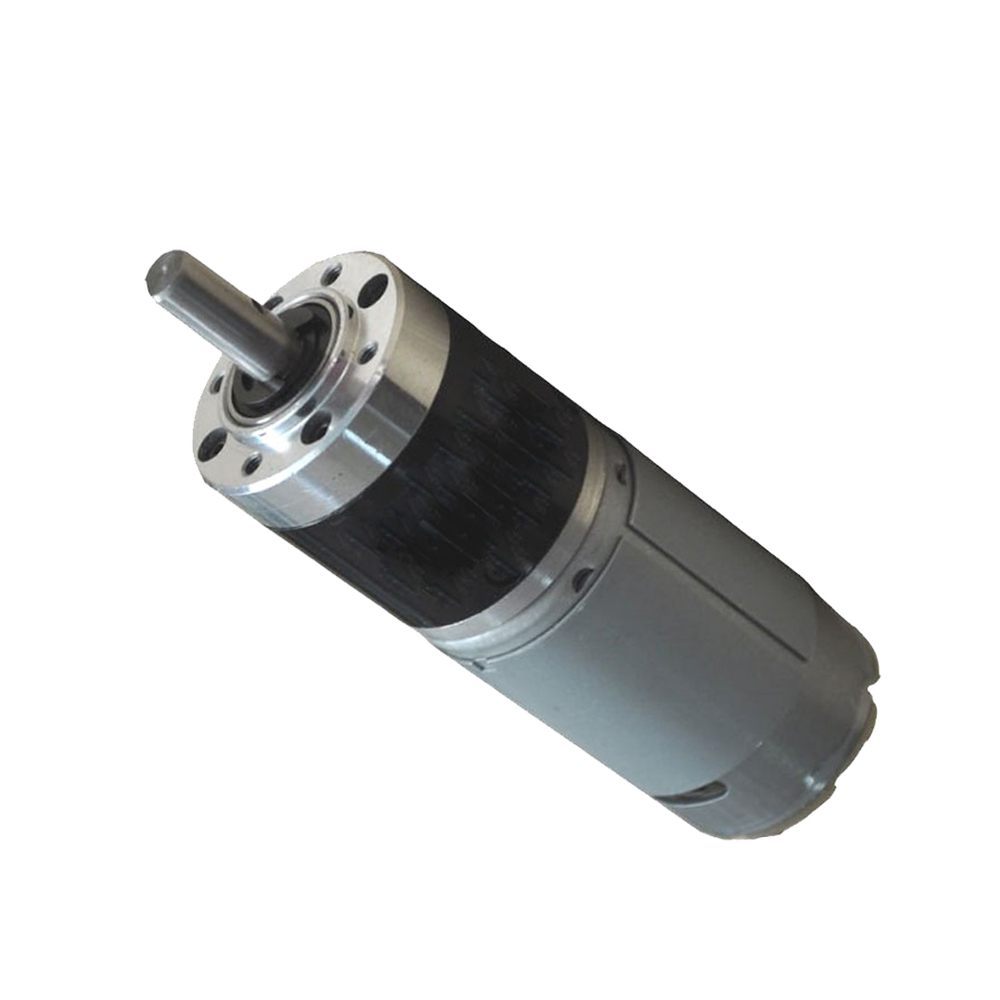

36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
1 / 5
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555

36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555

Send Inquiry

Product Description

1

Product Description

12 Volt 150W High Torque DC Gear Motor

  • Rated Voltage: DC12V
  • Speed No load: 30-50RPM
  • 20kg.cm Torque At Max Efficiency
  • Precius Metal-brush motors
  • Diameter 36mm, length 87mm, shaft 8.0mm
  • Weight: 500g Approx
  • Output power: 200W
  • Application: Robot, Home Appliance, Door Lock etc.
  • Customized: Adjust the performance freely (voltage, speed, torque, etc.)
2

Specifications

Model Parameters Planetary Gearbox Details
Reduction ratio 5/14/19/27/51/100/140/188/264/369/516/721
Gearbox length 26.4-52.5mm
Rated torque 3-30kg

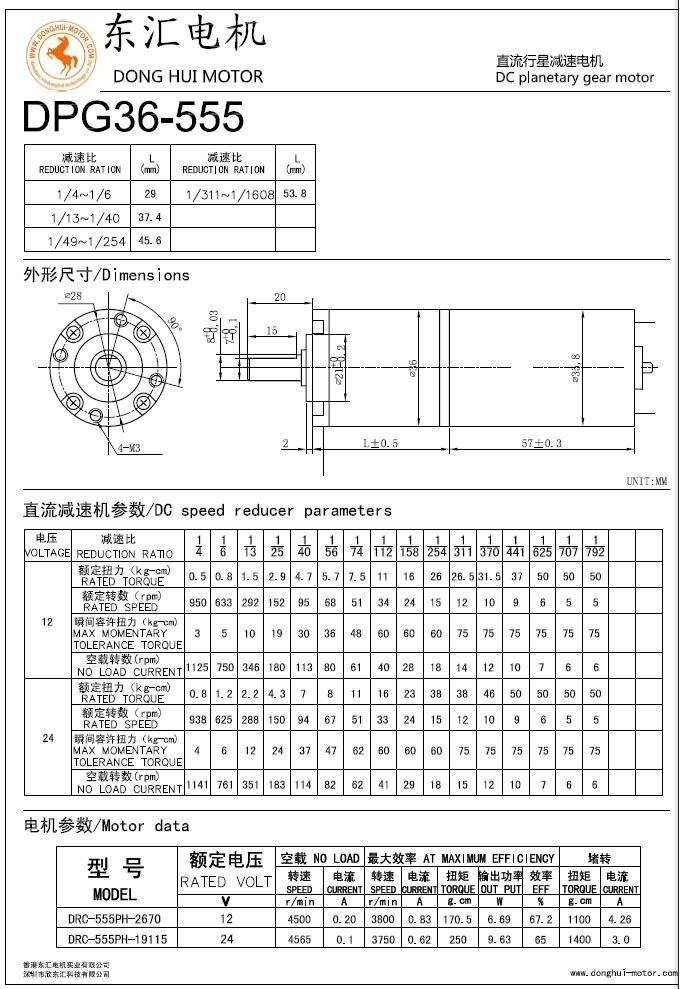

Technical Drawing
3

Related Products

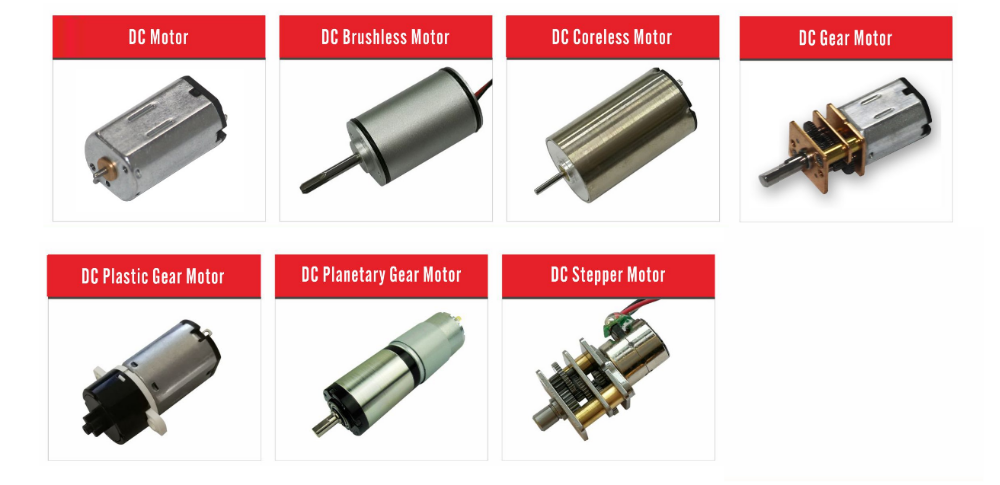

Related Motor 1

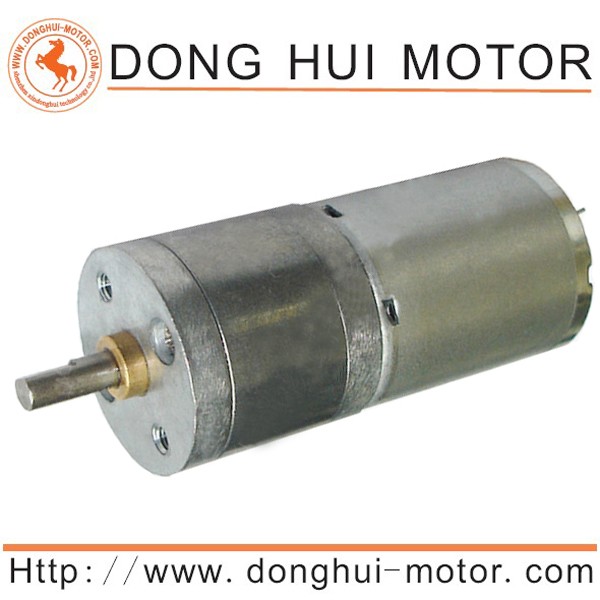

Related Motor 2
4

Manufacturing Excellence

Founded in 2003, we are a private high-tech enterprise mainly engaged in the design, development, production, sale and service of precision DC motors and gear motors.

Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras and domestic appliances.

Our Advantages:

  • 13 years experience in producing DC motors and DC gear motors.
  • Quality assurance with components from high-standard military enterprise sources.
  • Strong Production and R & D Ability.
  • 10 Years Export Experience in Germany, Japan and USA.
Factory View 1
Factory View 2
?

Frequently Asked Questions

What are your main products?
We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Brushless DC motors, Spur Gear motors, Vibration motors, and more.
What is the main usage of the micro DC gear motor?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Banking Systems, Automation industries, and Electronic tools like power door locks.
Do you accept customization?
Sure. We have a strong design team to handle performance adjustments in voltage, speed, and torque to meet your technical requirements.
What kind of data do I need to provide for an order?
Please provide the required voltage, speed, torque, and overall dimension constraints for your application.
What if I don't know the specific motor data?
Please reach out to our sales team. We will guide you through the selection process and answer your technical questions patiently.
Is there a quality assurance for your gear motors?
Yes, we have over 13 years of experience and utilize high-quality gears often sourced from military-grade suppliers to ensure durability.
