Home > dc brushless motor > 28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

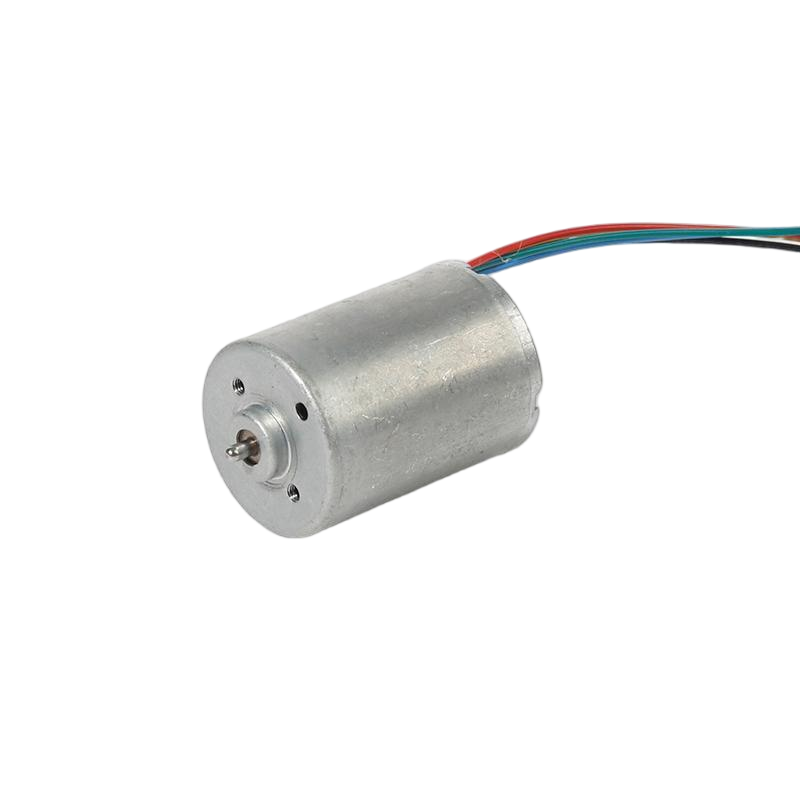

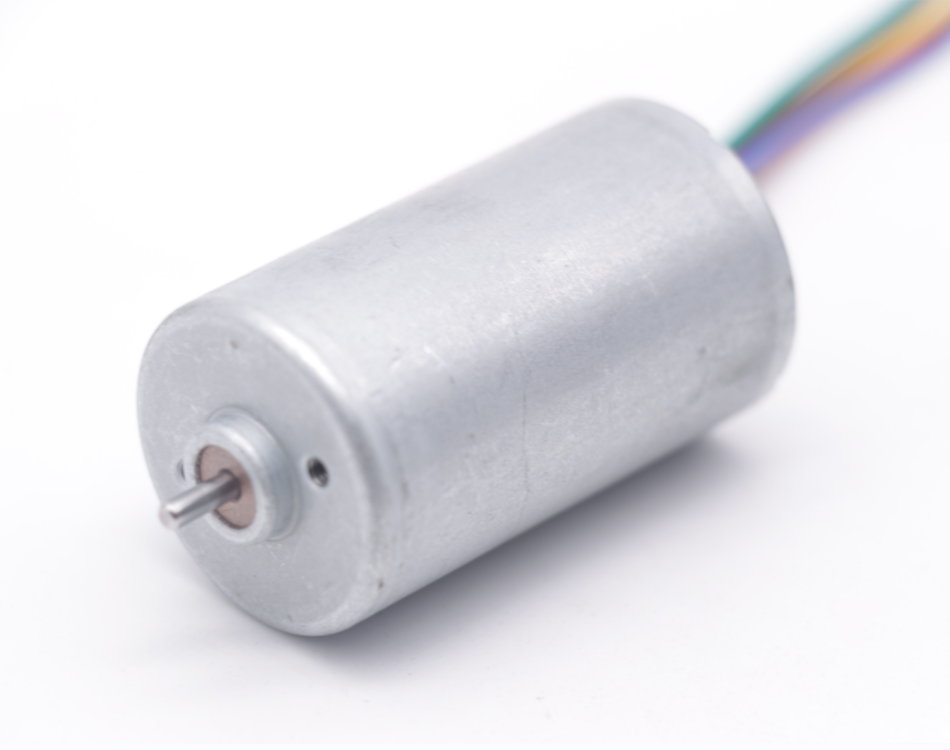

28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
1 / 5
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

Send Inquiry

Product Description

📋
Specification
Item2838 Brushless Motor, 2847 Brushless Motor
SizeDiameter 28mm, Length 38mm, 47mm
Voltage3.7V~26V
Unload Speed2000-12000rpm
Output torque≤1100g.cm
Wattage≤25watt
DriverBuilt-in design or Customized
BearingBall bearing or normal bearing
Lifetime3000hours~20000hours
FunctionFG, CW/CCW, PWM
ProtectionOver current protection, Over heating protection
FeatureLong lifetime, low noise, high efficiency, stable and reliable
ApplicationFan, Car Vacuum Cleaner, Food Processor, Pump, Toy and Model, Power tool, Drill
⚙️
Product Description
🚀 Motor's voltage, speed, ratio, torque, shaft length can be customized

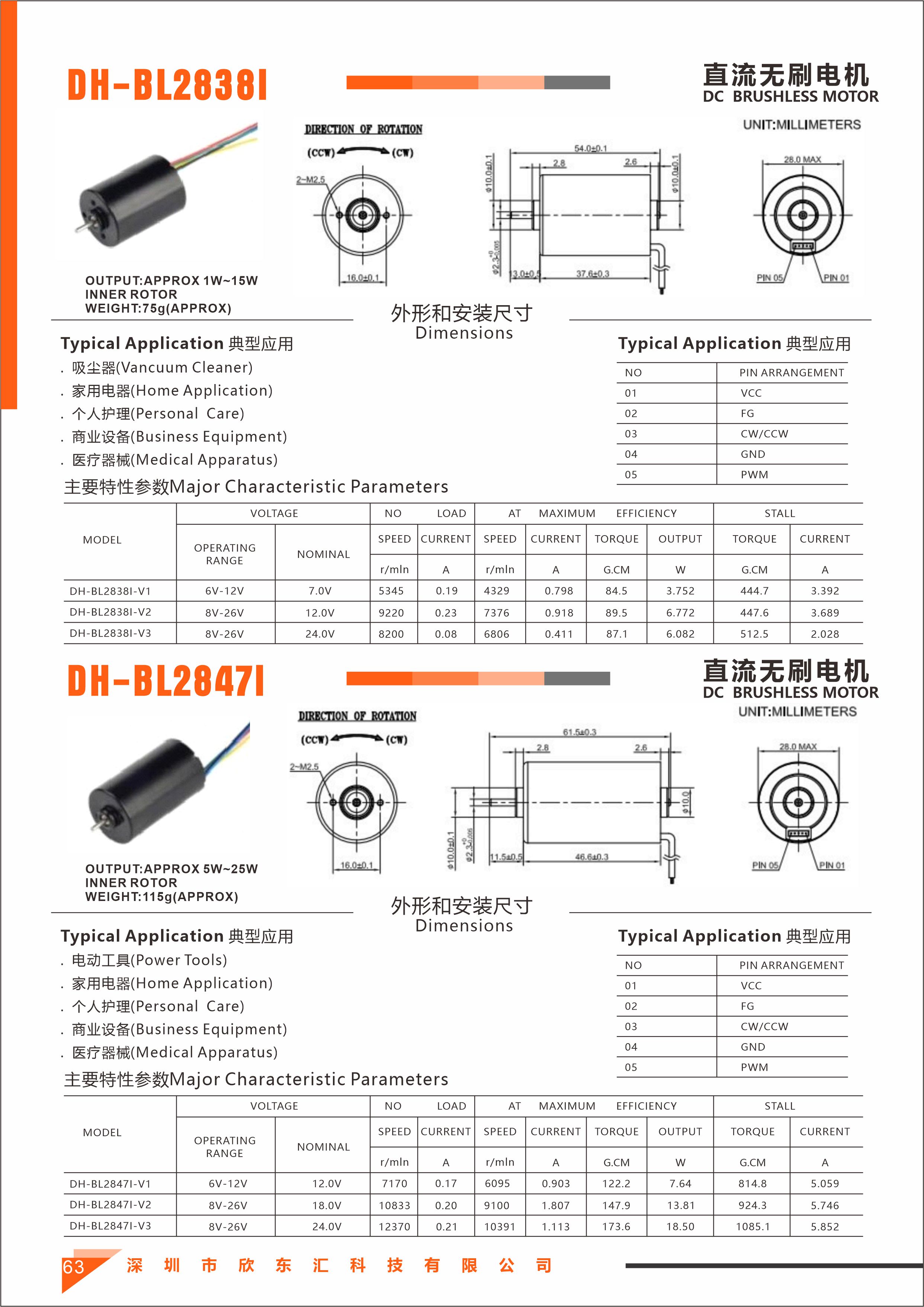

Brushless Motor Details

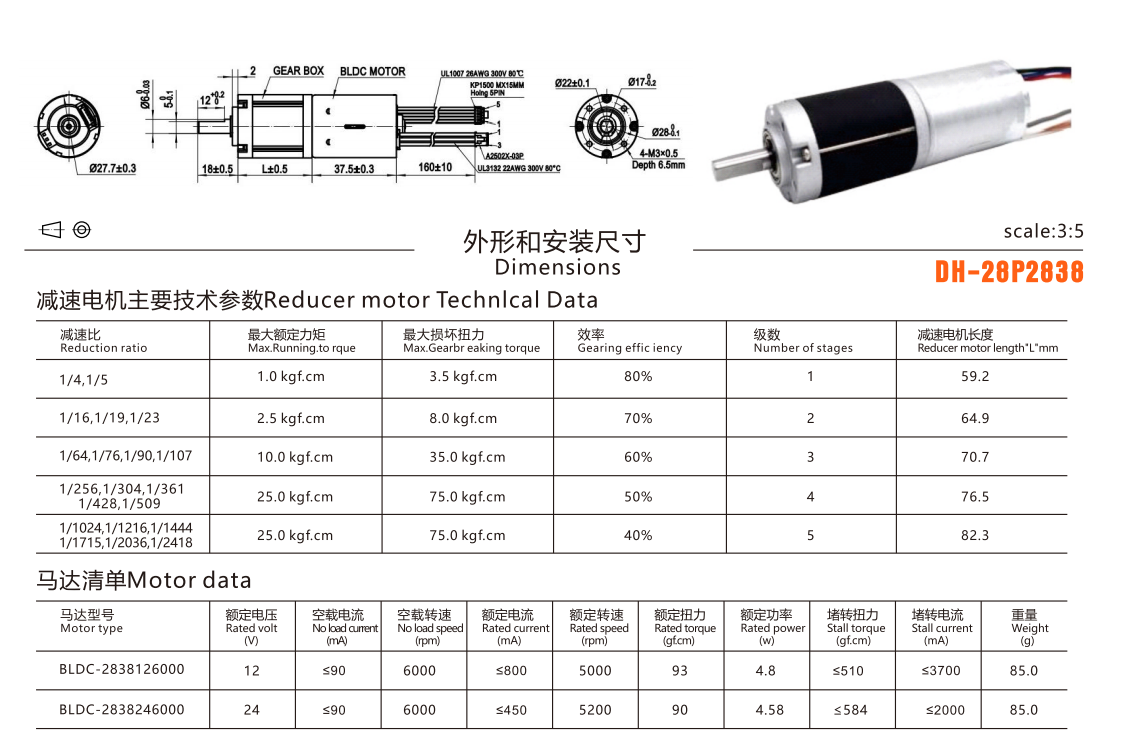

Motor Technical Drawing
📦
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

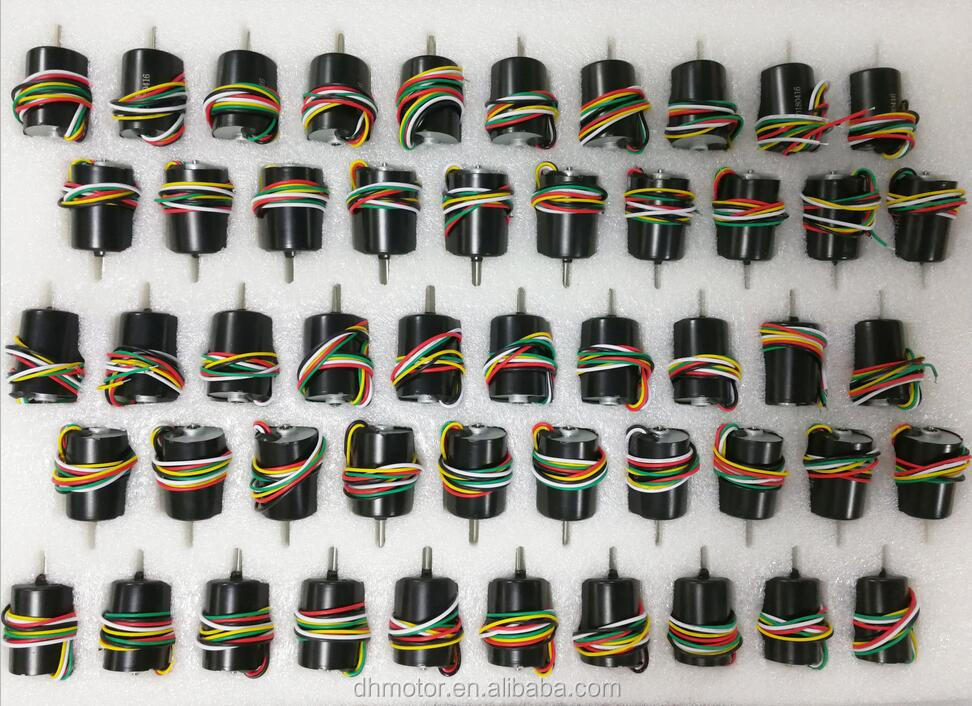

Packaging Process 1
Packaging Process 2
Packaging Process 3
Delivery Readiness
🏢
Factory & Production
❓
Frequently Asked Questions
1. Can the motor specifications be customized?
Yes, we provide customization options for voltage, speed, ratio, torque, and shaft length to meet your specific requirements.
2. What is the expected lifetime of these brushless motors?
Depending on the bearing type and usage conditions, the lifetime ranges from 3,000 hours up to 20,000 hours.
3. What safety protections are built into the motor?
Our motors include integrated over-current protection and over-heating protection to ensure stable and reliable operation.
4. Which applications are these motors suitable for?
They are ideal for fans, car vacuum cleaners, food processors, pumps, power tools, drills, and various toy models.
5. Do you support different control functions?
Yes, our motors support FG (frequency generator) signals, CW/CCW (clockwise/counter-clockwise) rotation, and PWM (pulse width modulation) for speed control.
6. What types of bearings do you use?
We offer both high-quality ball bearings for longer life and normal bearings for standard applications.
