Precision Micros
Precision Micros

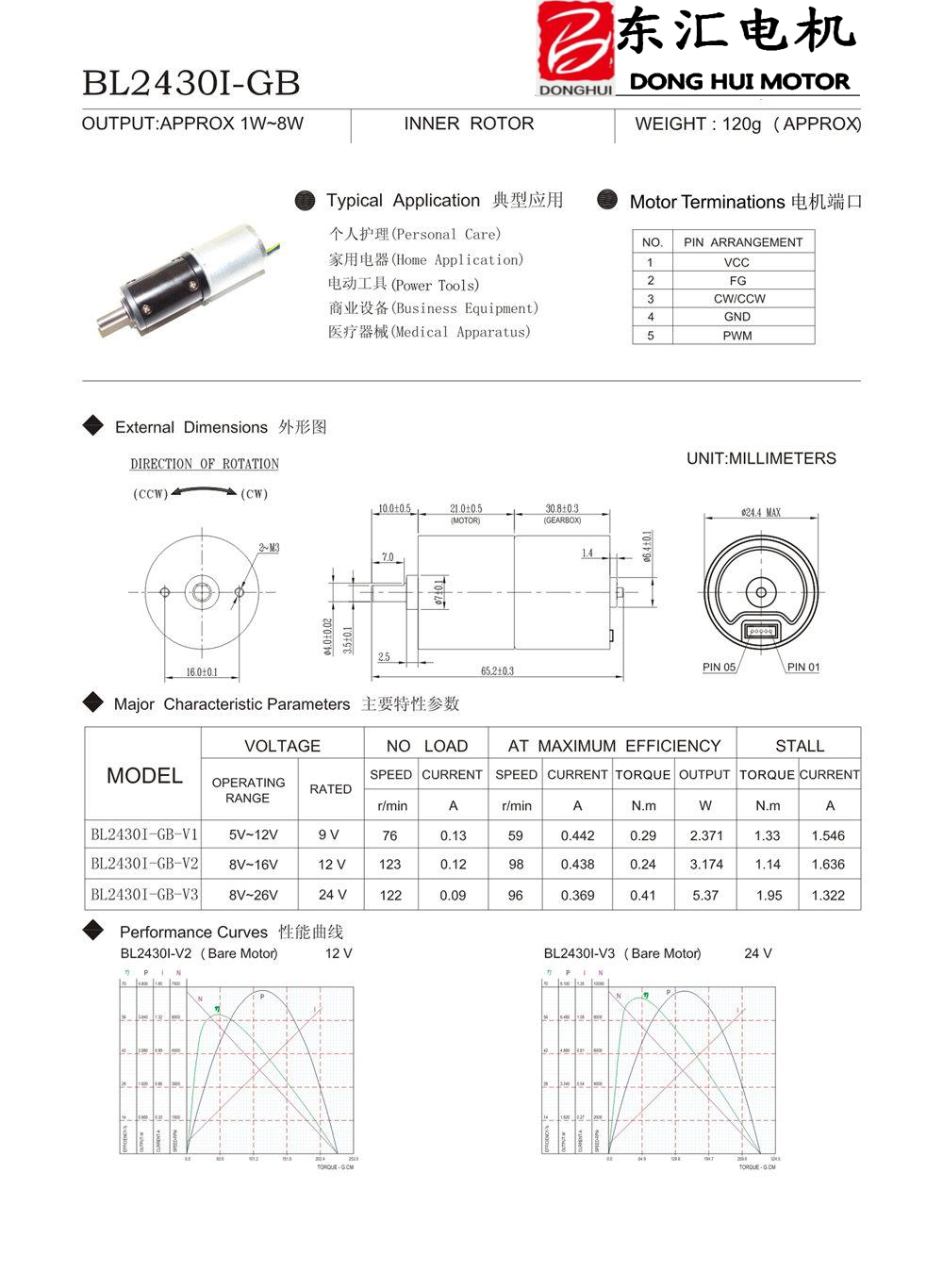

| Place of Origin | Guangdong China (Mainland) | Model Number | DBL2430-GB |
| Usage | Fan, Home Appliance | Certification | ROHS |
| Type | Micro Motor | Torque | 9.8mNm |
| Construction | Permanent Magnet | Commutation | Brushless |
| Protect Feature | Drip-proof | Speed(RPM) | 9260rpm no load |
| Continuous Current(A) | 0.2A no load | Output Power | 1W~10W |
| Voltage(V) | 12V | Efficiency | IE 1 |
| Rated load speed | 6000rpm | Rated load torque | 9.8mNm |
| Rated load current | 0.62A | Starting torque | 38.2mnm |
| Starting current | 1.8A | Motor Length | 30.8±0.3mm |
| Shaft Diameter | 2.0mm | Shaft Length | Can be customized |
| Application | Air pump | Features | Long life, low noise, low EMI |
| Packaging Detail | 1. Export standard packing; 2. Factory standard packing; 3. Packaging can be customized according to customer's request. |
| Delivery Detail | 15 days for samples, 25-30 DAYS for batch. |

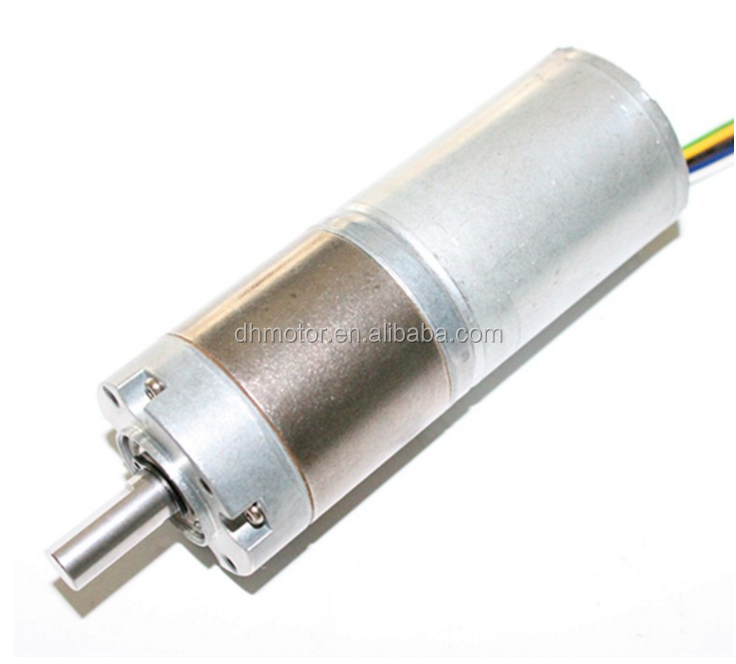

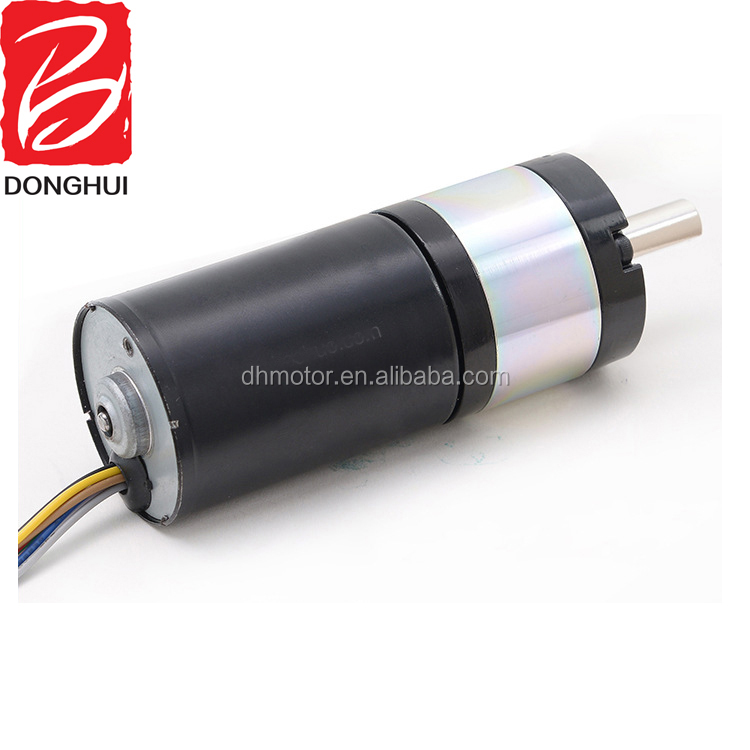

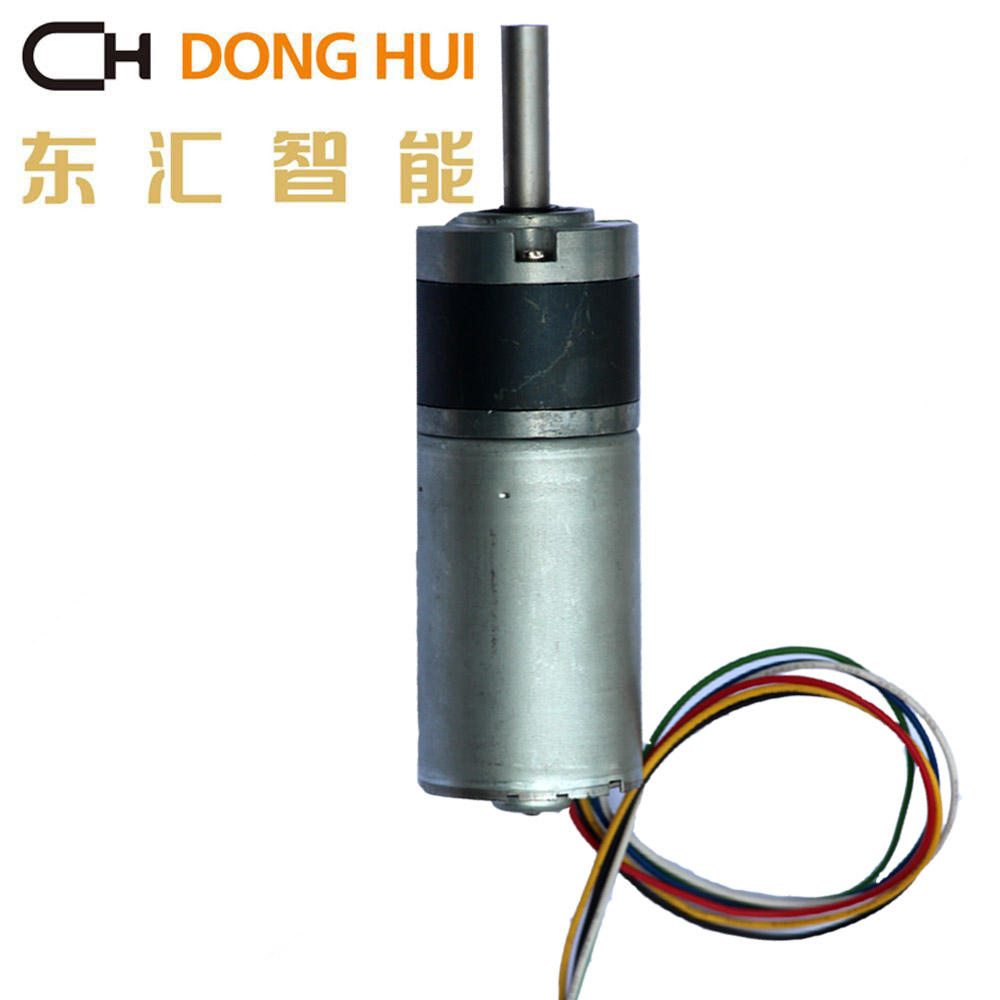

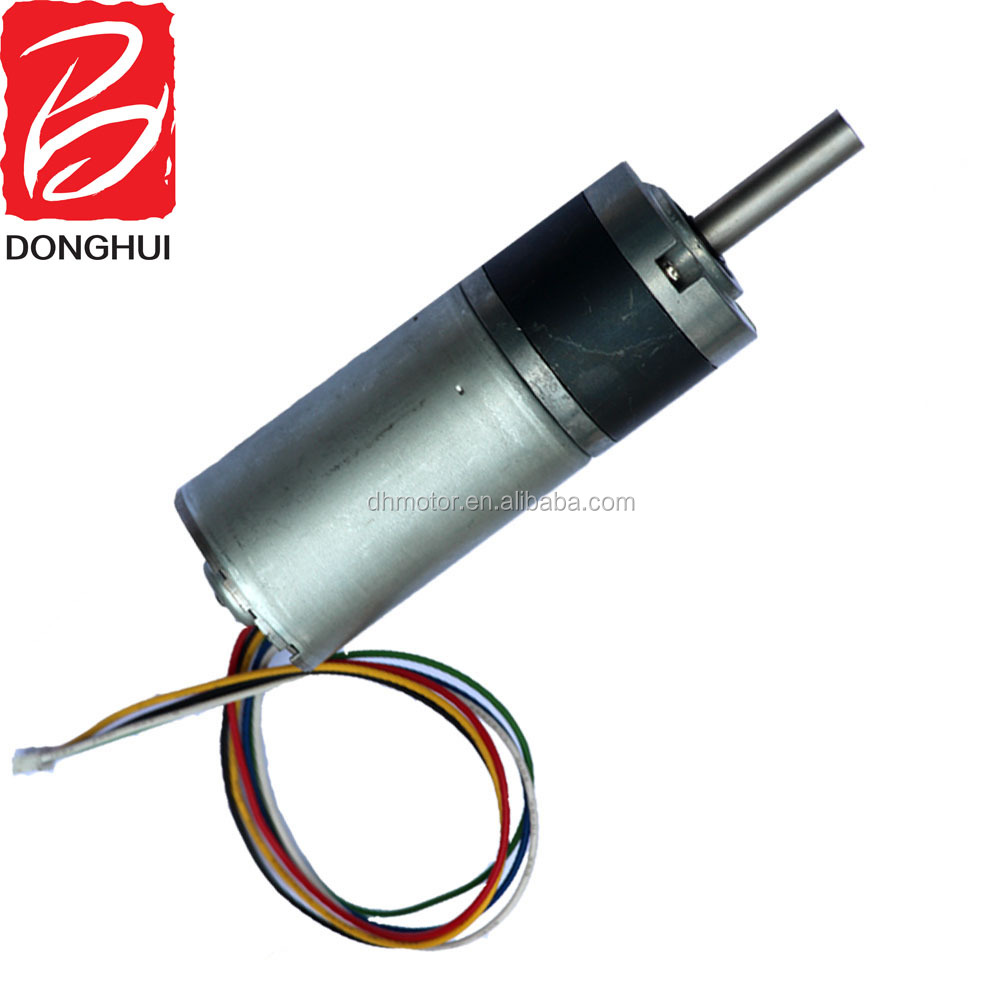

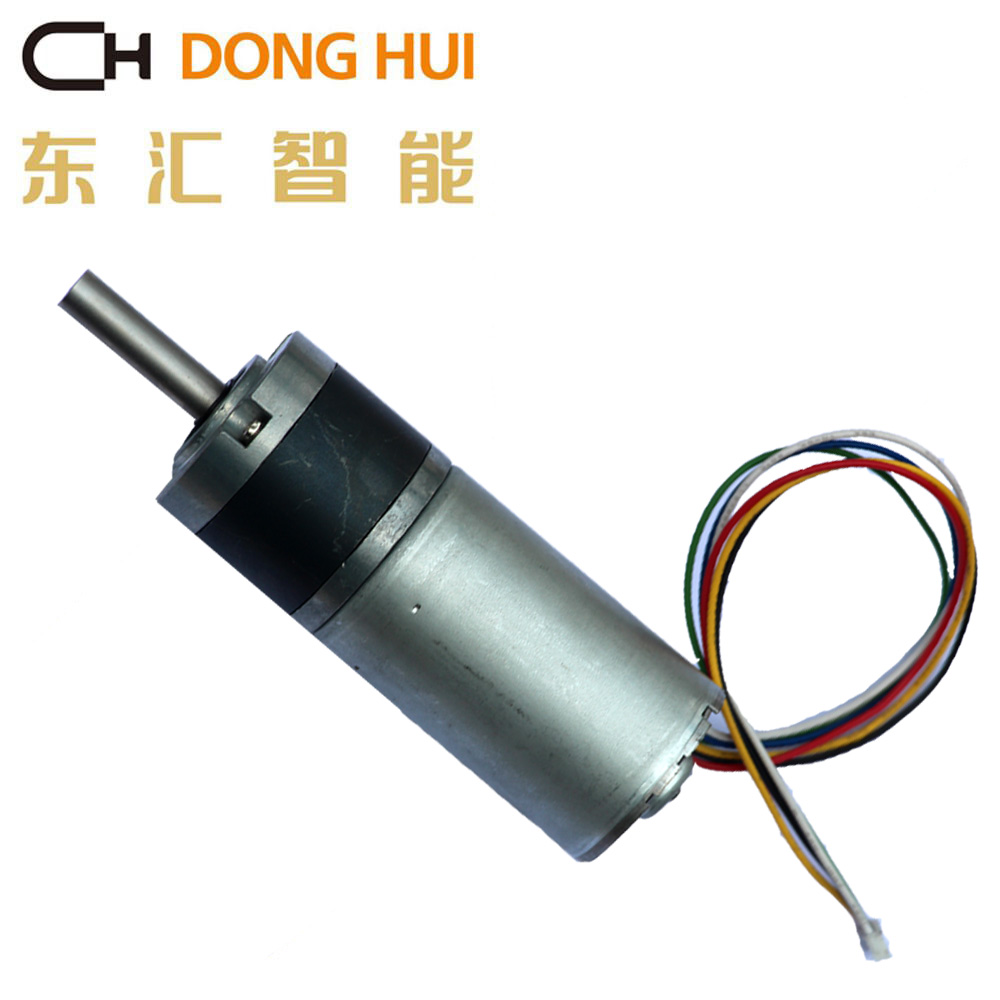

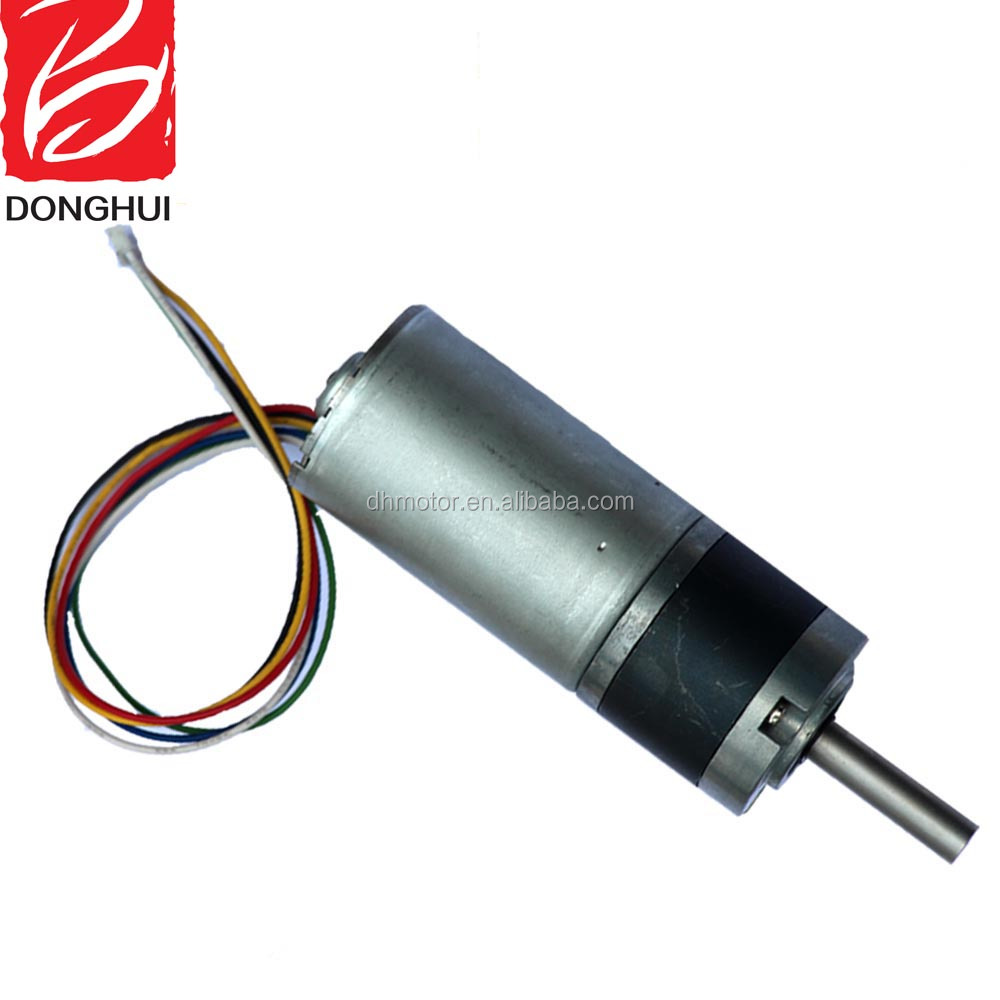

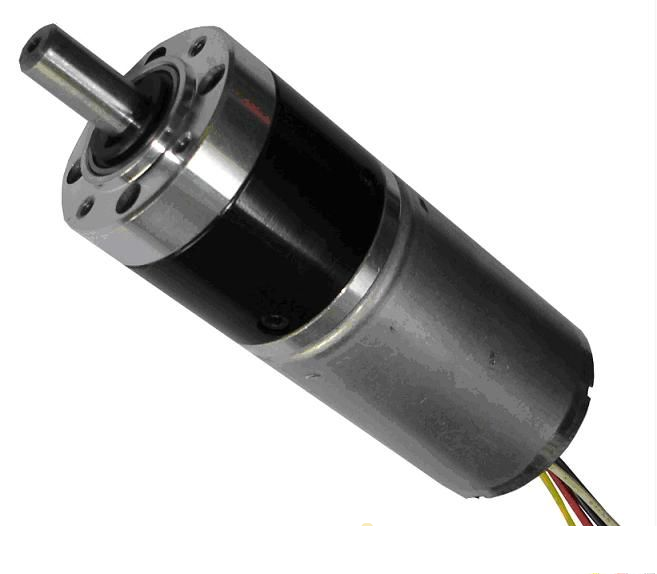

22mm 24mm 28mm 32mm 36mm 12v brushless planetary gear motor, 12v brushless gear motor with planetary gear box

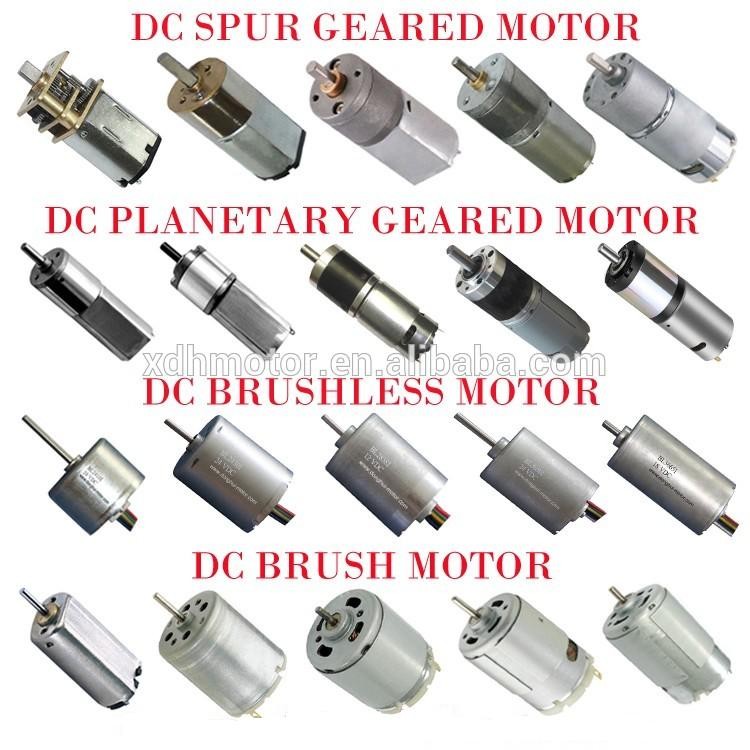

Since established in 2007, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields.
