Precision Micros
Precision Micros
| Model Number: | DB2838 | Type: | Micro Motor |
| Usage: | Fan, Home Appliance | Certification: | ROHS |
| Torque: | 17.5mNm | Construction: | Permanent Magnet |
| Commutation: | Brushless | Protect Feature: | Drip-proof |
| Speed (No Load): | 4430rpm | Current (No Load): | 0.08A |
| Output Power: | 1W~10W | Voltage: | 12V |
| Efficiency: | IE 1 | Rated Load Speed: | 3000rpm |
| Rated Load Torque: | 17.5mNm | Rated Load Current: | 0.73A |
| Starting Torque: | 56.8mnm | Starting Current: | 2.0A |
| Motor Length: | 37.6±0.3mm | Shaft Diameter: | 2.3mm |
| Shaft Length: | Customizable | Application: | Air pump |
| Packaging Detail: | 1. Export standard packing; 2. Factory standard packing; 3. Customizable per customer request. |
| Delivery Detail: | 15 days for samples, 25-30 days for batch orders. |
DC motor, DC gear motor, DC brushless motor, OEM and motor product design provided.

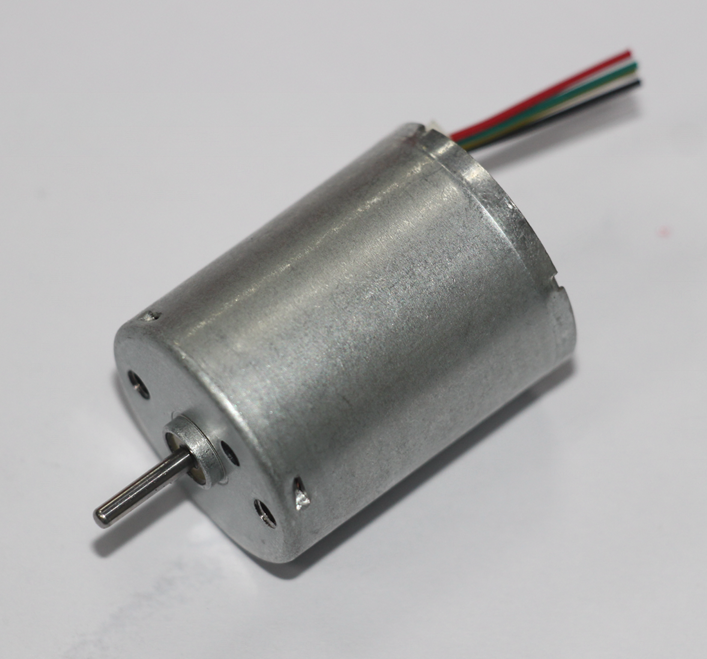

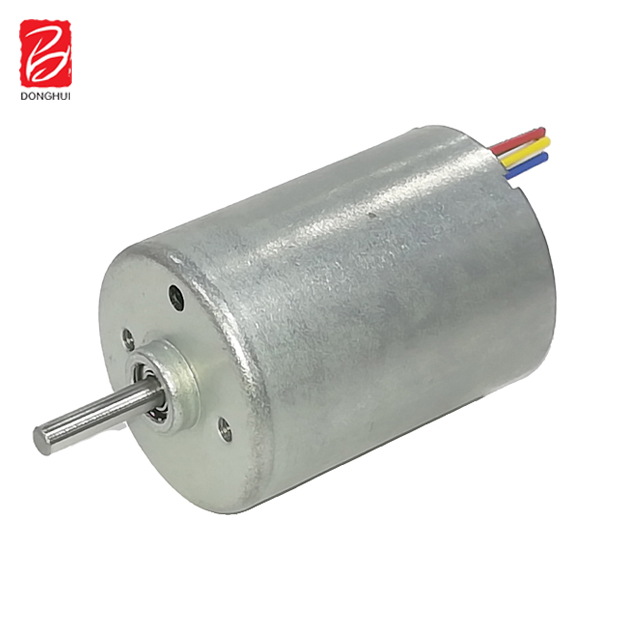

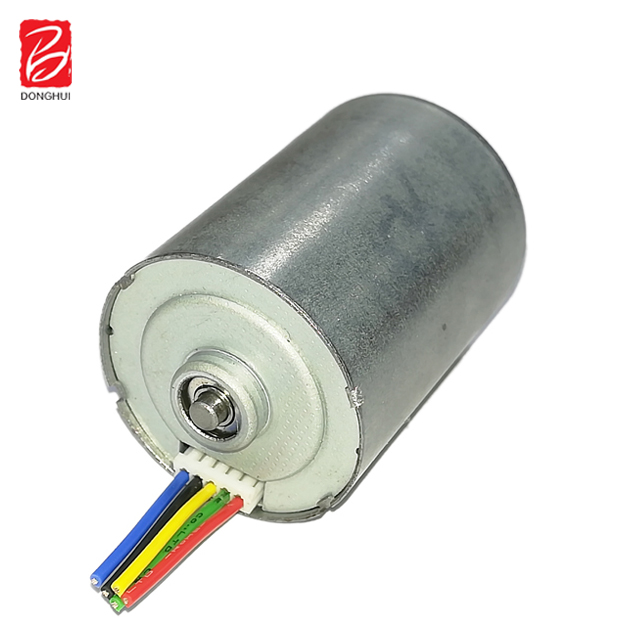

28mm 2838 12V Brushless DC Motor for Electric Boats and Home Appliances
Established in 2003, our team has been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.
