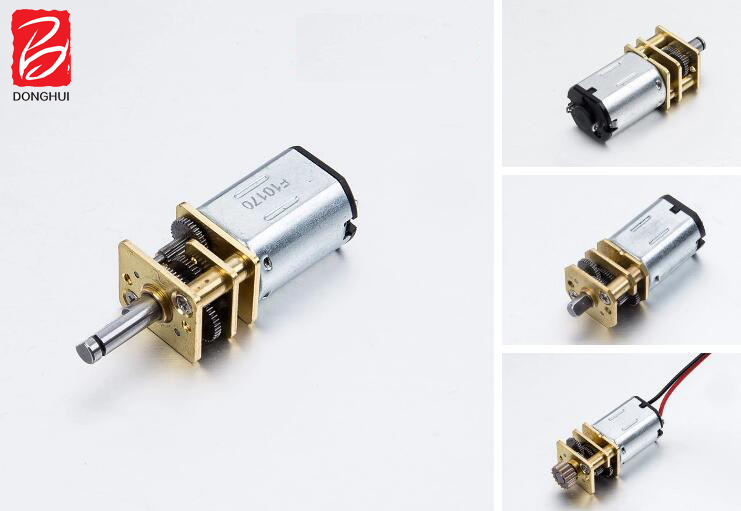

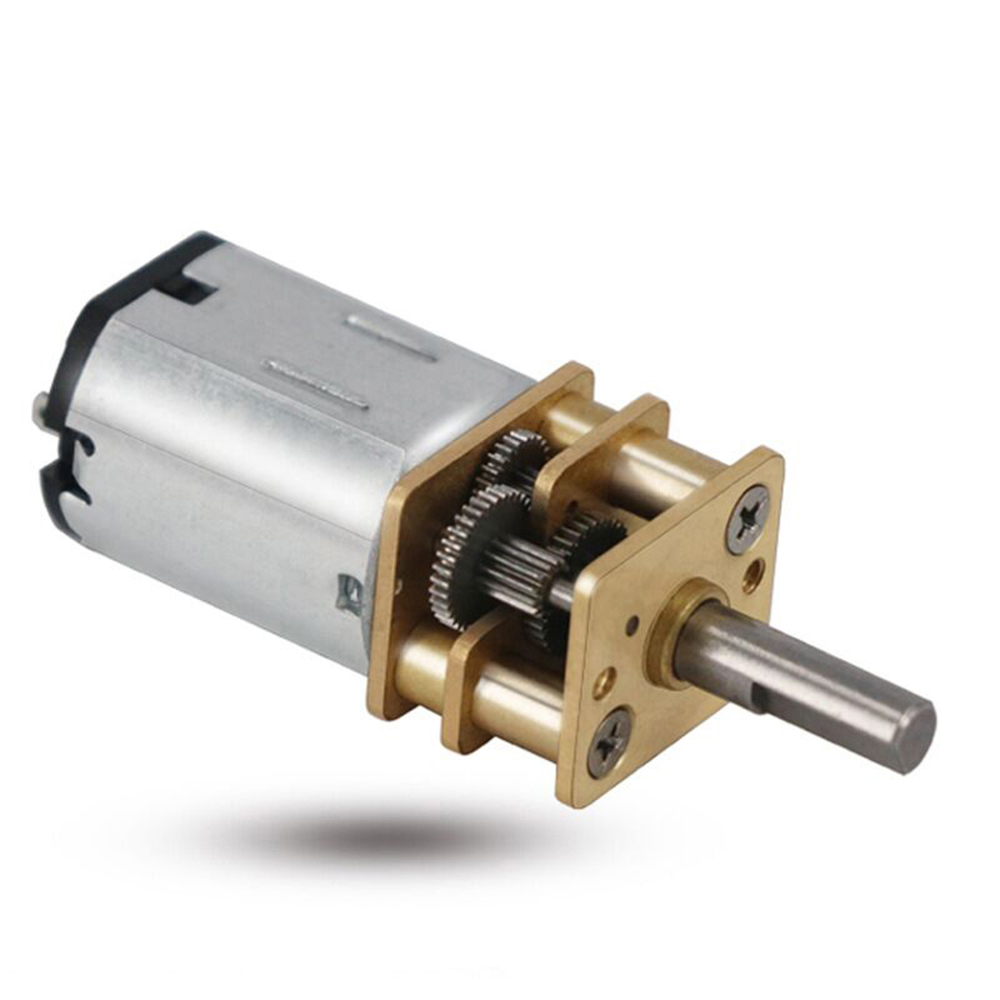

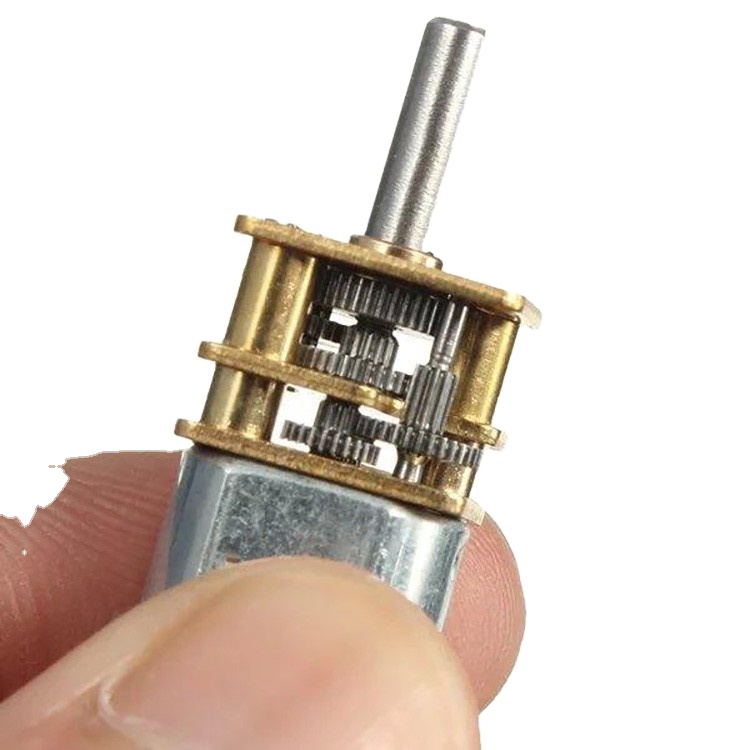

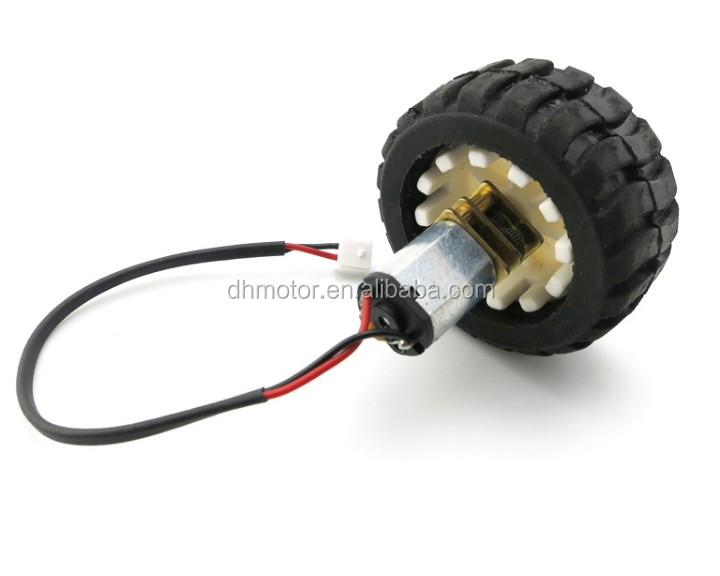

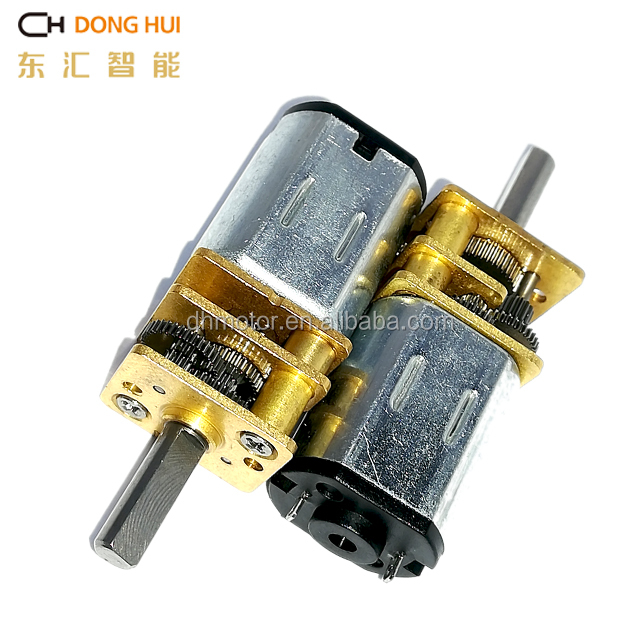

12mm 45/75 RPM 2.5v 3v 4.5v 6v 7.5v 12v DC Micro Gear Motor with Wheel for Toy Car DGA12-N20

1 / 5

12mm 45/75 RPM 2.5v 3v 4.5v 6v 7.5v 12v DC Micro Gear Motor with Wheel for Toy Car DGA12-N20

Send Inquiry

Product Description

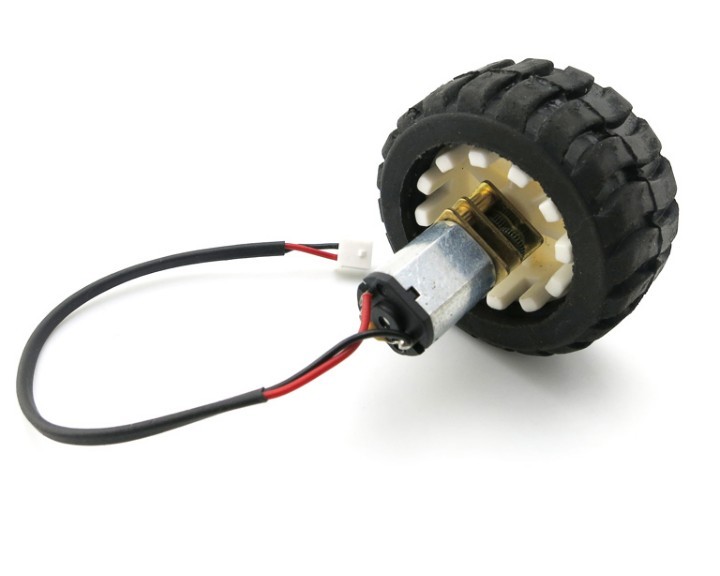

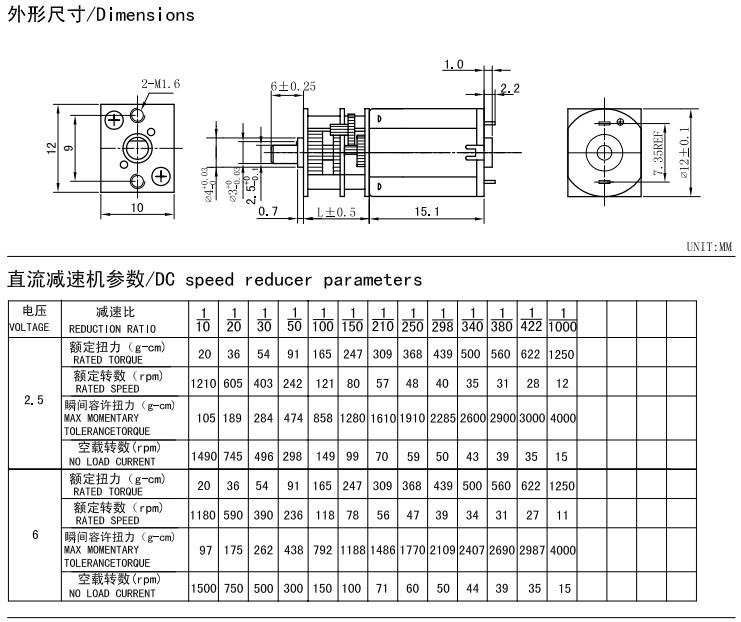

N20 GEAR MOTOR

💡 Note: The voltage, speed, torque, current, and shaft length can be adjusted upon your request.

Size: 12mm diameter, 24mm length
Motor Type: DC Brush Motor
Application: Personal care, Home applications, Power tools, Business equipment, Medical equipment

Product Name	DC GEAR MOTOR N20
Rated Voltage	3.0~12.0V
On Load Speed	10~2000rpm
On Load Current	0.02A~0.06A
Stall Torque	50~5000g.cm
Stall Current	3.5A Max
Life Span	500 hours Max

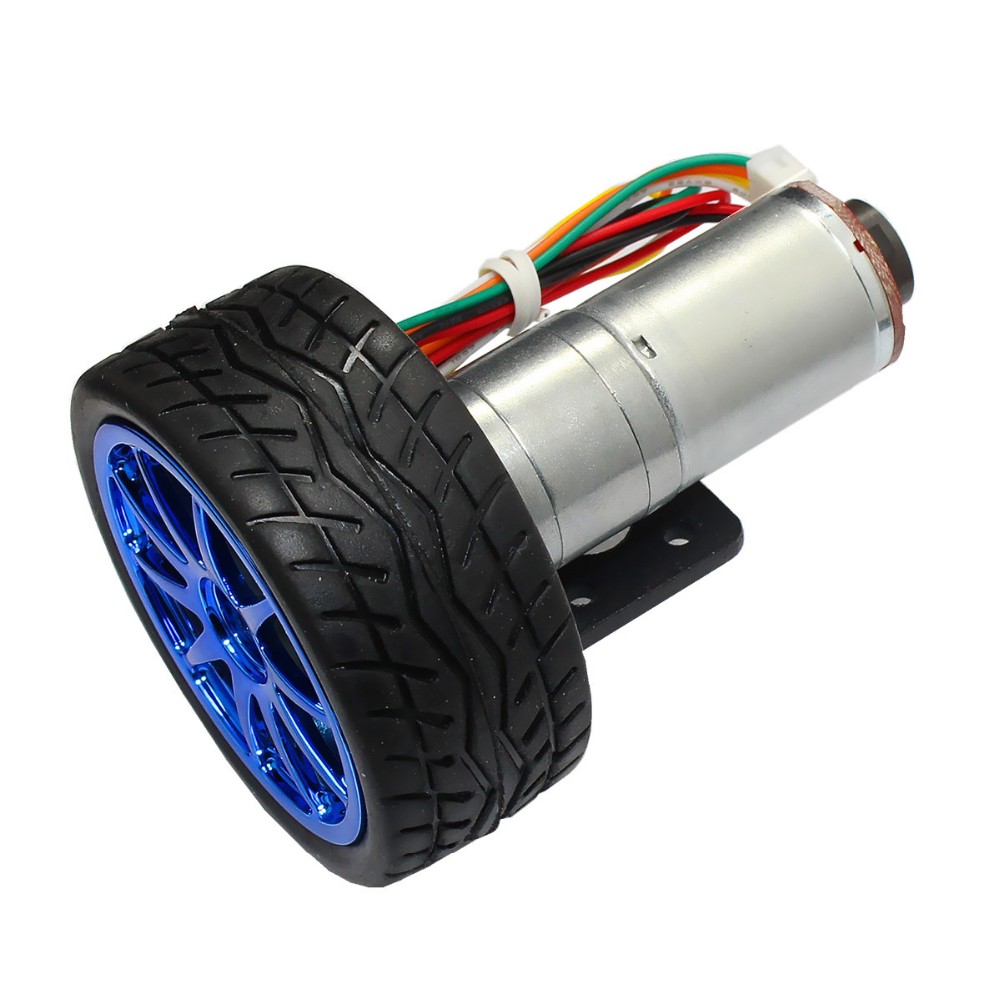

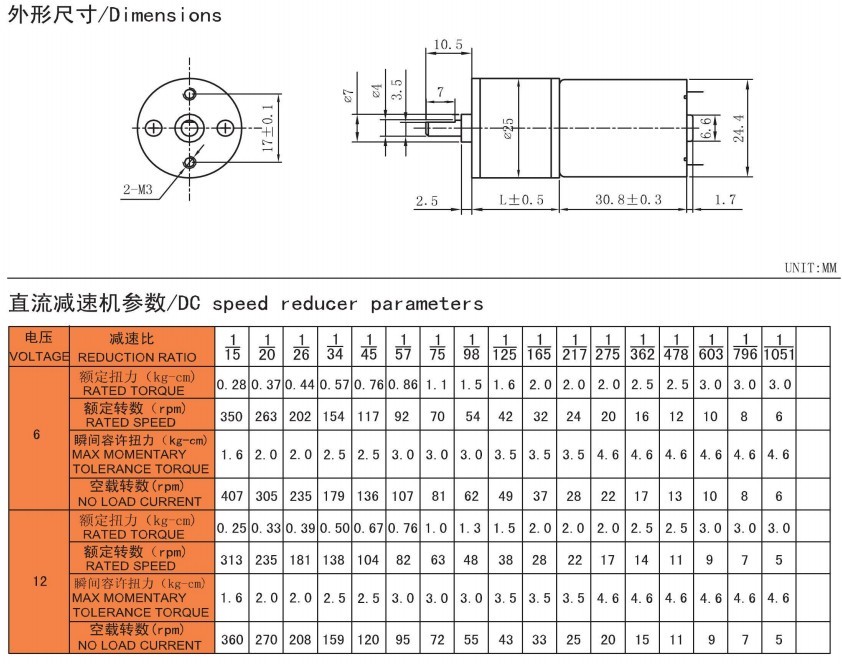

DGA25-370 GEAR MOTOR

💡 Note: The voltage, speed, torque, current, and shaft length can be adjusted upon your request.

Size: 24mm diameter, 39mm length
Motor Type: DC Brush Motor
Application: Personal care, Home applications, Power tools, Business equipment, Medical equipment

Product Name	DGA25-370 GEAR MOTOR
Rated Voltage	3.0~24v
On Load Speed	5000rpm
On Load Current	0.6A
Stall Torque	440g.cm
Stall Current	3.5A
Life Span	2000 hours

Related Products

Professional Capabilities

Founded in 2001, we are a private high-tech enterprise mainly engaged in the design, development, production, sale, and service of precision DC motors and gear motors. Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, and domestic appliances.

20 years of experience in producing DC motors and DC gear motors.
Gears sourced from military-grade enterprises for quality assurance.
Strong Production and R&D Ability.
14 Years of Export Experience in Germany, Japan, and the USA.

Certifications

Frequently Asked Questions

What are your main product lines?

We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless motors, Spur Gear motors, Vibration motors, and customized Micro Motors.

What are the primary applications for your gear motors?

Our motors are widely used in Home Appliances, Office Equipment, Health-care devices, Banking Systems (vending machines, payment equipment), and automation industries like electric door locks.

Can you provide customized motor solutions?

Yes, we accept customization. With our strong design and technical teams, we can adjust voltage, speed, torque, and dimensions to meet your specific requirements.

What information is needed to place an order?

Please provide the required voltage, speed, torque, and overall physical dimensions needed for your application.

How can I get assistance if I am unsure of the technical specifications?

Please contact our technical sales team. We will guide you through the selection process and answer any questions to ensure you get the right motor for your project.

What is the typical lifespan of these motors?

The lifespan varies by model; for instance, the N20 series reaches up to 500 hours, while the DGA25-370 series can provide up to 2000 hours of operation under rated conditions.
