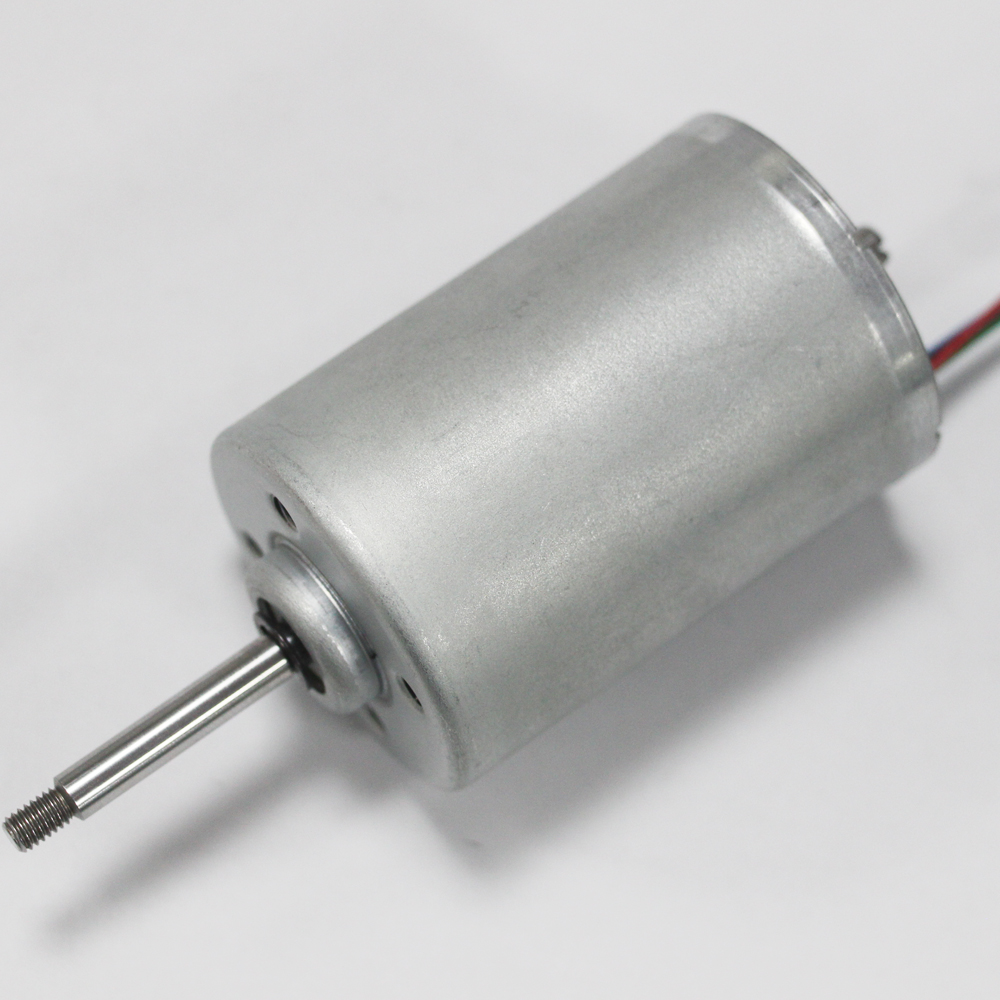

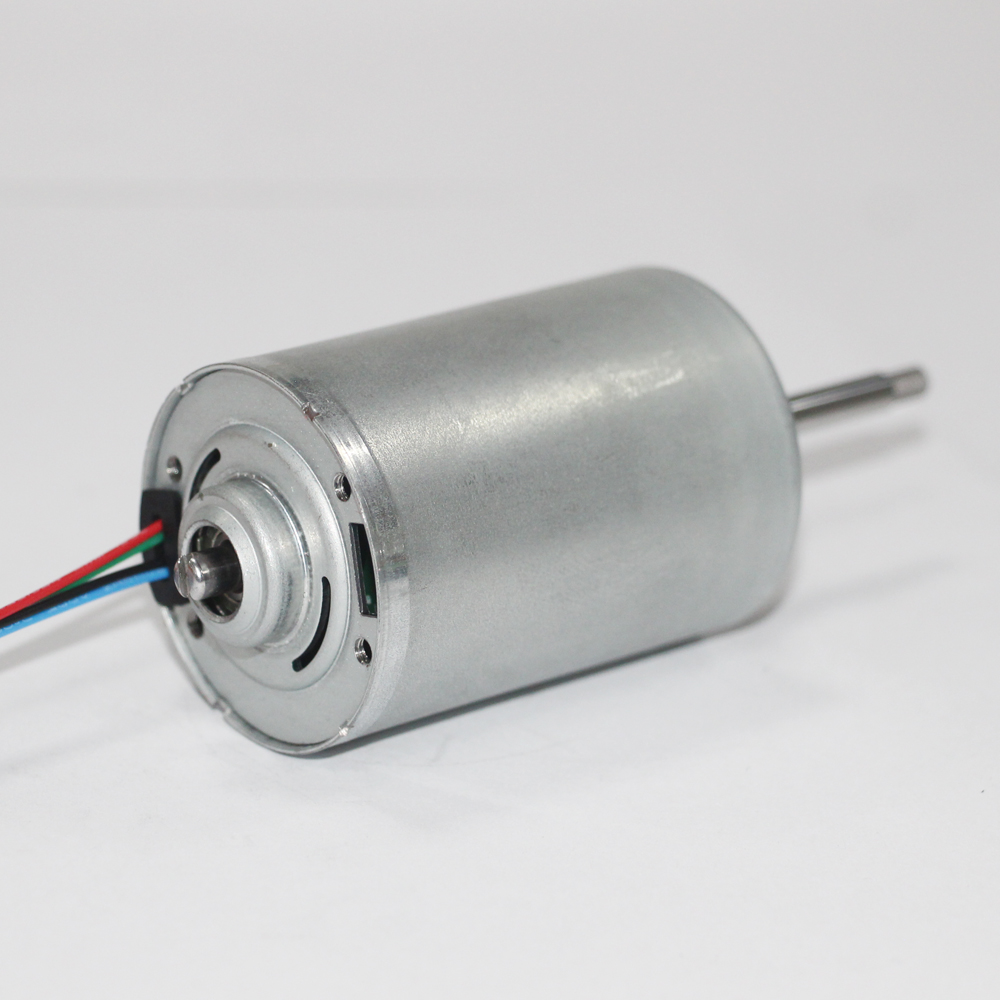

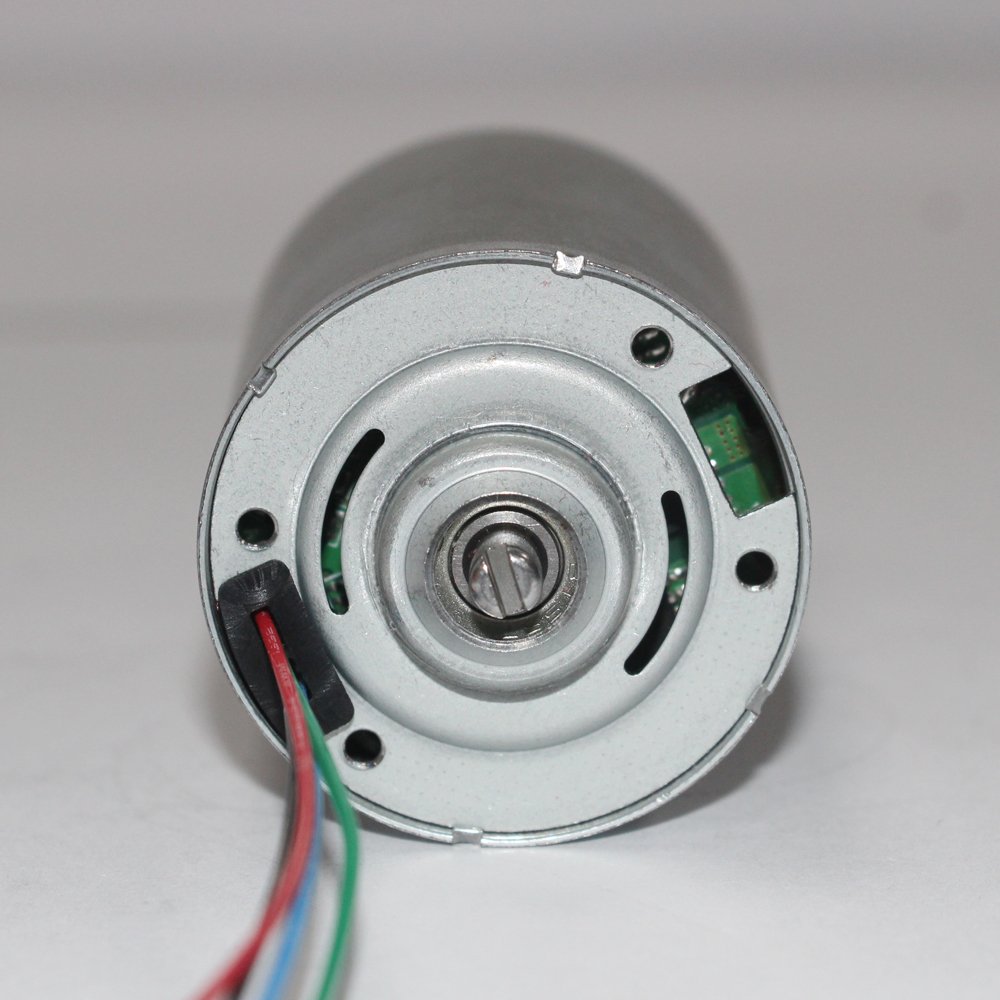

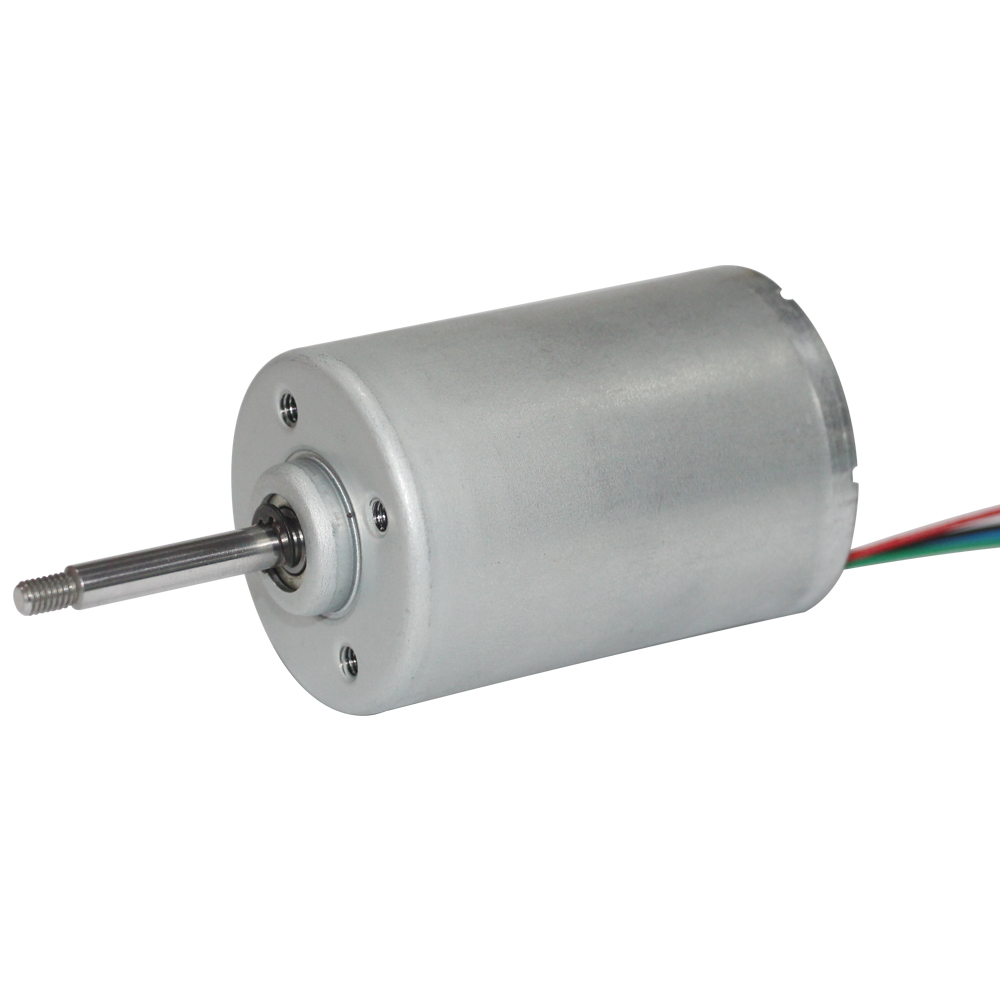

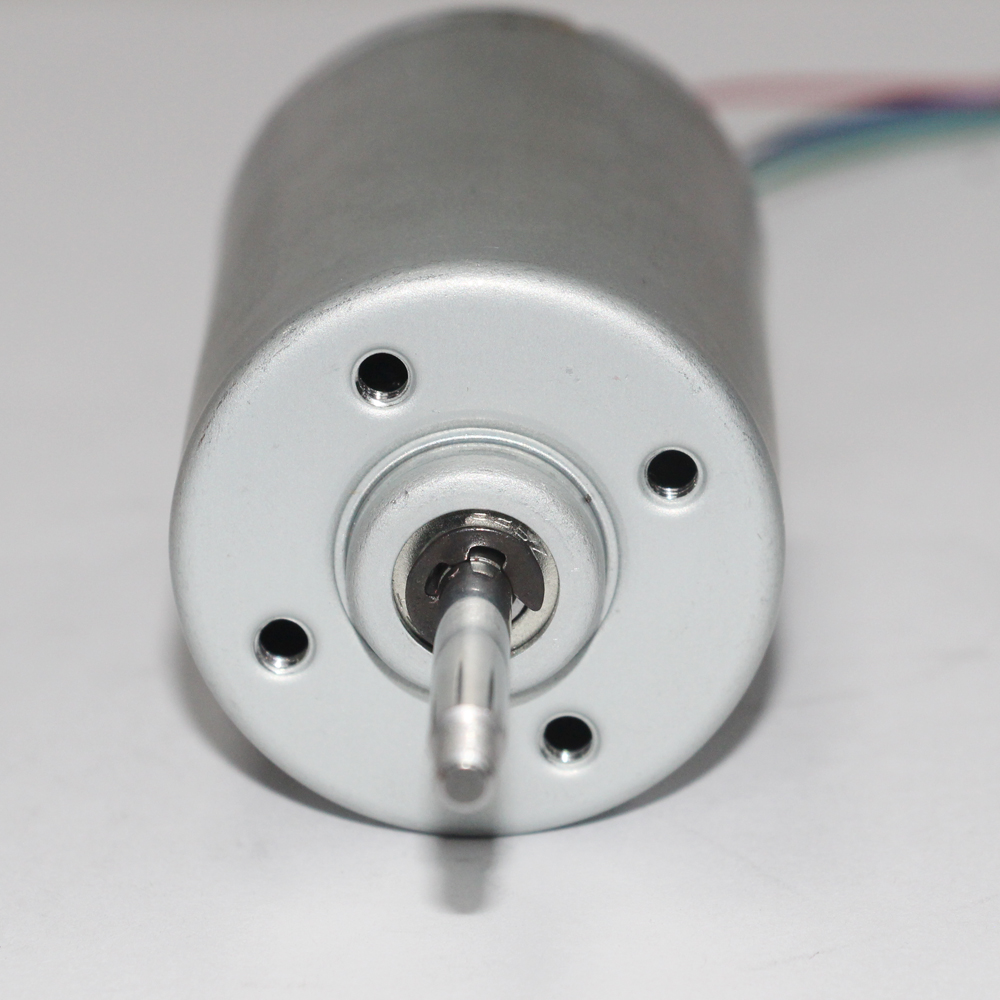

42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
1 / 5
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260

42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260

Send Inquiry

Product Description

Product Description
42mm 12V High Torque BLDC Motor Brushless Motor
Model Number DB4260 Voltage(V) 12V
Certification ROHS Rated load speed 1700rpm
Type Brushless motor Rated load torque 480 g.cm
Commutation Brushless Starting current 6.18A
Protect Feature Drip-proof Starting torque 1734 g.cm
Construction Permanent Magnet No load speed 2000 rpm
Shaft length Customizable No load current 0.15A
Key Applications & Features
✔ Widely used in Robots, Intelligent Locks, Auto Shutters, USB Fans, Slot Machines, and Money Detectors.
✔ Ideal for Coin Refund Devices, Currency Counters, and Towel Dispensers.
✔ Suitable for Automatic Doors, Peritoneal Machines, and Automatic TV Racks.
✔ High performance for Office Equipment and Household Appliances.
✔ Low noise operation, low current consumption, and spark-free performance.
Available Reduction Ratios

1/10, 1/20, 1/30, 1/50, 1/75, 1/100, 1/150, 1:210, 1:250, 1/298, 1/340, 1/380, 1: 422, 1/600, 1/1000.

Note: Specifications are for reference only. Motor voltage, speed, ratio, torque, and shaft can be customized after evaluation. (Voltage: 3-12V, Speed: 10-3000rpm, Ratio: up to 1:1000, Torque: 10-1000g.cm).

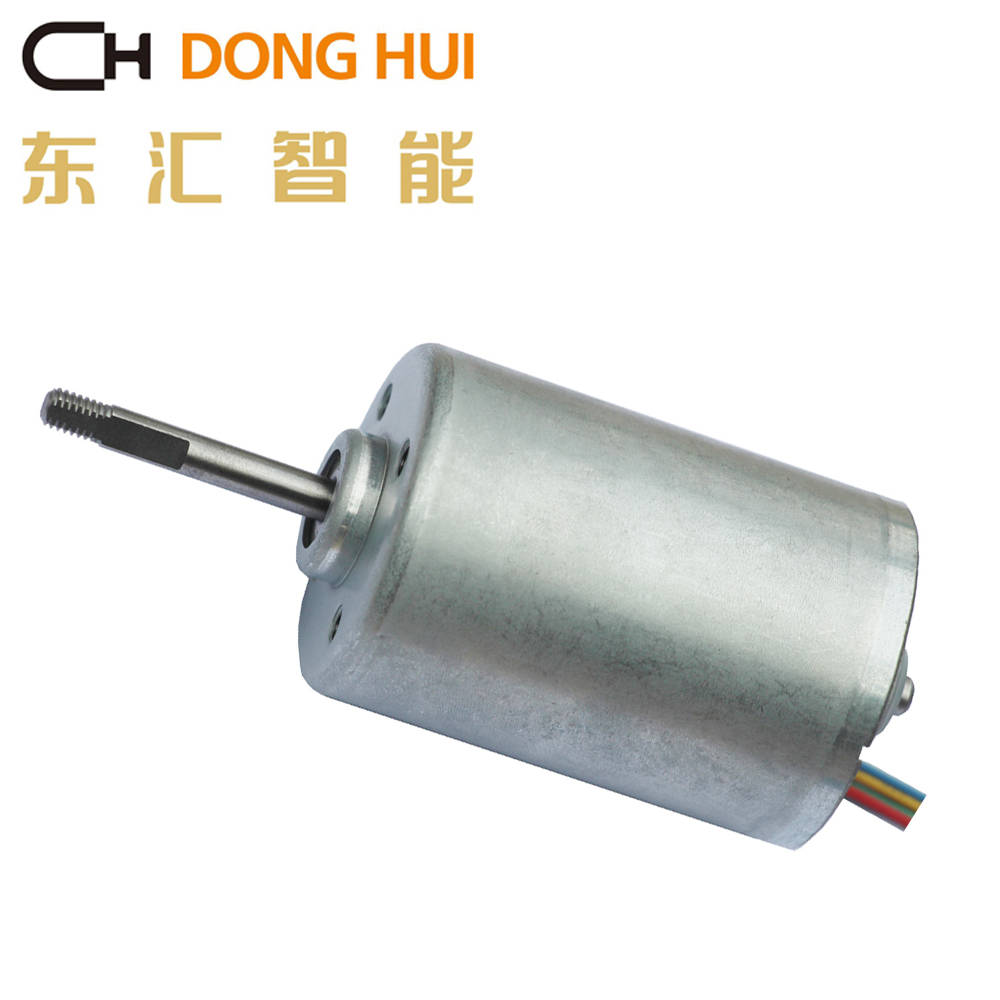

Product Image
Specifications & Dimensions

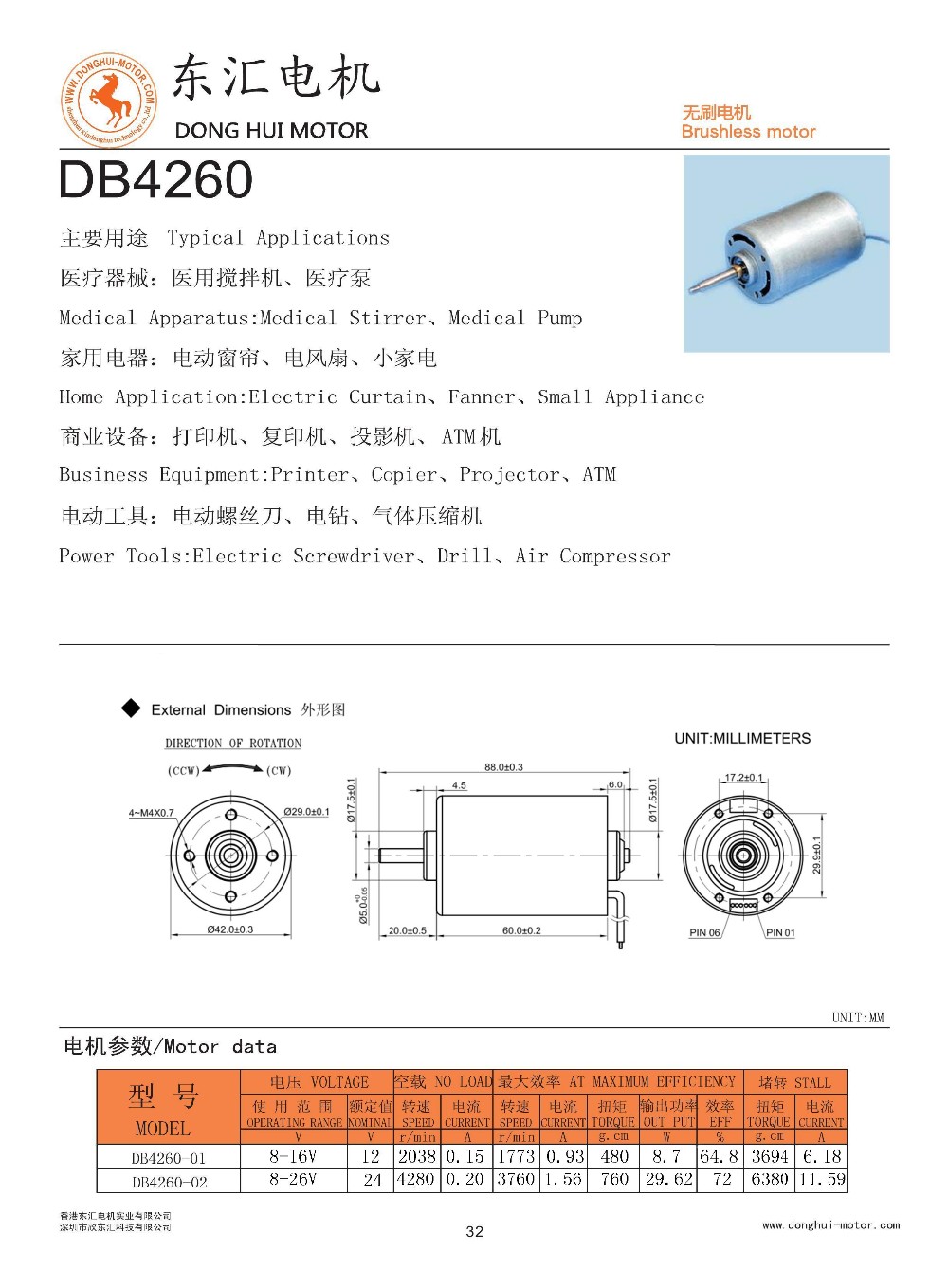

Technical Specifications
Related Products

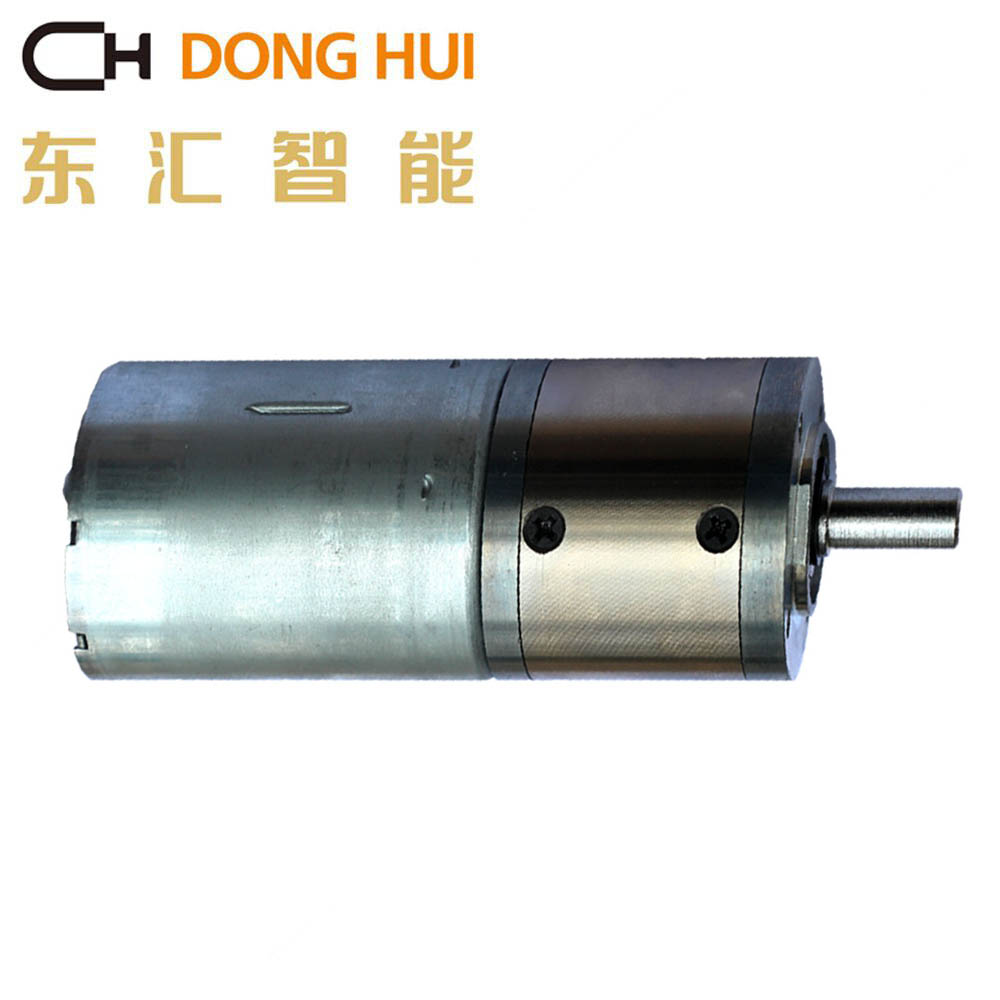

Related Product 1

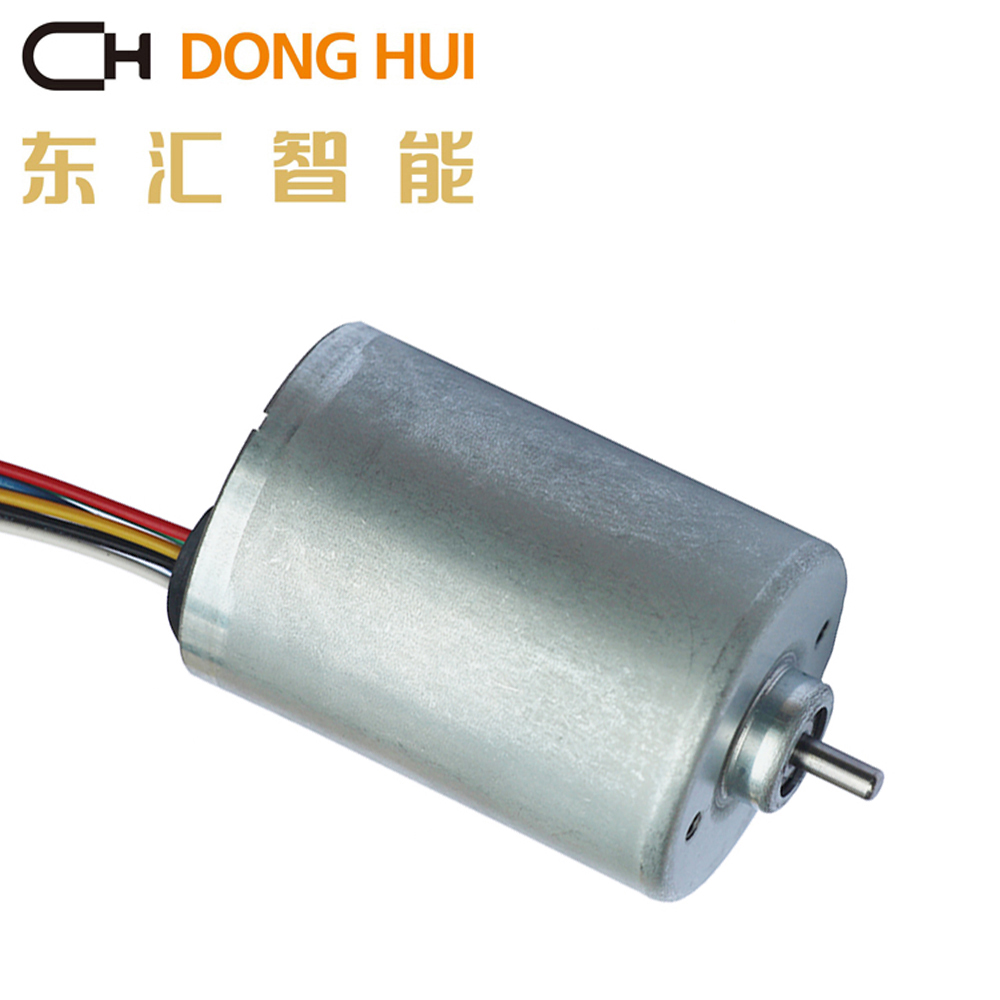

Related Product 2
Manufacturing Excellence

Engaged in the design, development, production, and service of precision DC motors and gear motors since 2003.

★ Over 13 years of experience in DC motor and gear motor production.
★ High-quality assurance with precision-engineered gears.
★ Strong R&D and production capabilities for custom solutions.
★ 10 years of export experience to Germany, Japan, and the USA.

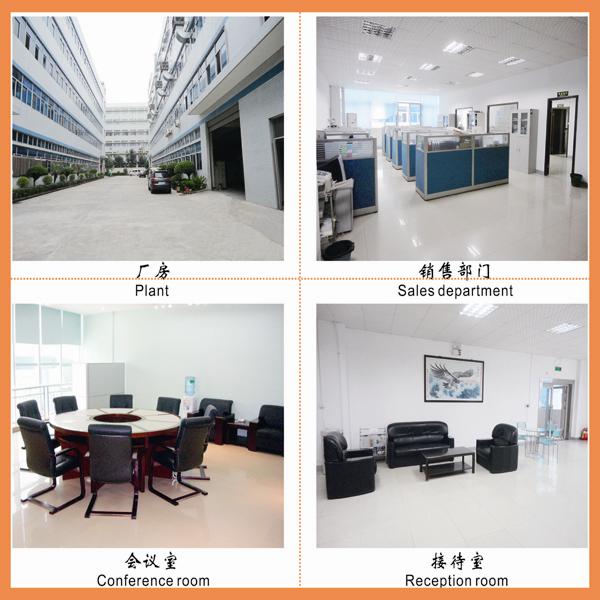

Production Line 1

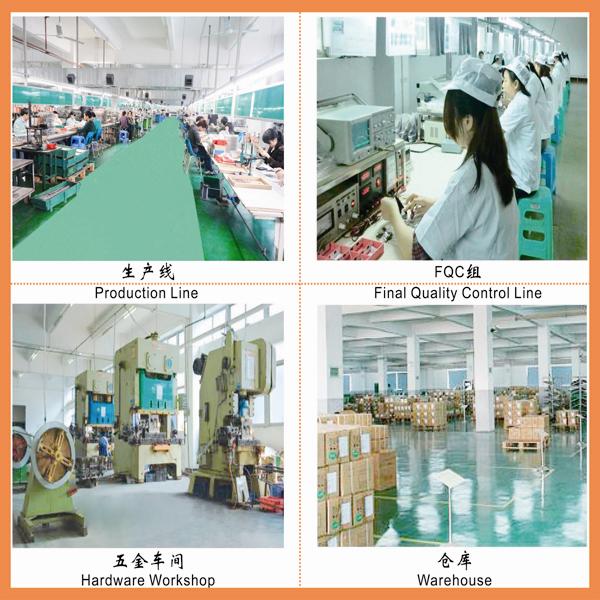

Production Line 2
Production Line 3
Certifications
Certifications
Packing & Delivery
Packaging Details

Standard Lister/Carton packaging for secure transport.

Packing 1
Packing 2
Shipping Options
Shipping Method Estimated Time Details
Express (DHL/UPS/FEDEX/TNT) 3-5 Days Fast, Door-to-Door service with tracking.
Air Shipping 3-5 Days Fast, Airport-to-Airport.
Sea Shipping 15-30 Days Cost-effective for large volumes, Port-to-Port.

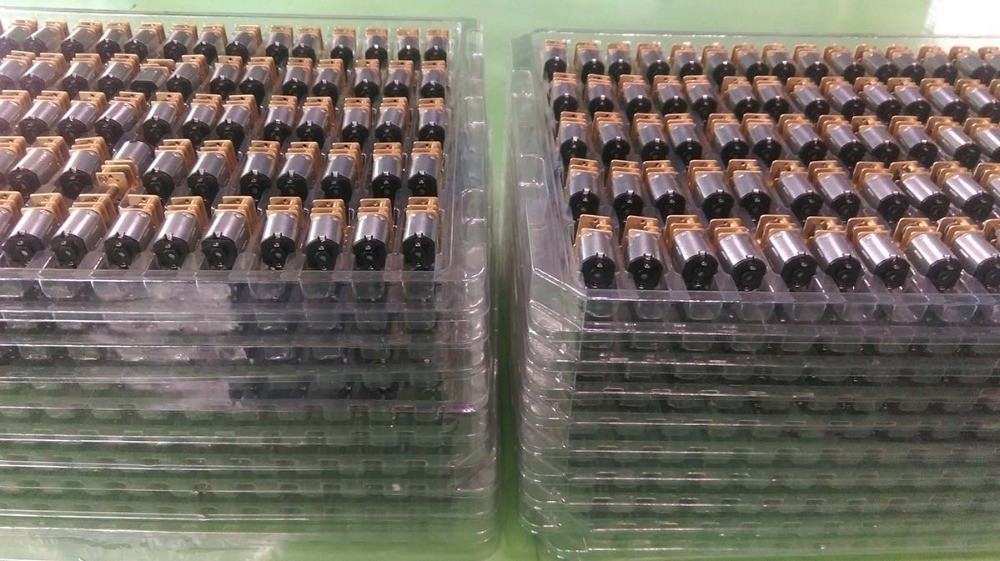

Logistics
Frequently Asked Questions
What are your main products?
We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush and Brushless DC motors, Spur Gear motors, Vibration motors, and more.
What is the main usage of your micro DC gear motors?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Banking Systems (vending machines, payment equipment), and automation industries like electric power locks.
Do you accept customization?
Yes. We have a strong design and technical team to handle custom requirements and provide technical solutions.
What data is required for a motor order?
Please provide the required voltage, speed, torque, and overall dimensions to help us match the best product for your needs.
What if I am unsure of the technical specifications?
Please contact our sales team. We will patiently guide you through the selection process based on your application requirements.
What is the typical lead time and MOQ?
The standard MOQ is 100 pieces for bulk orders, and the typical delivery time ranges from 20-25 days. Samples can be provided for initial testing.
