KEY SPECIFICATION OF THE MOTOR
| ITEM |
VALUE |
| Motor Type | Vibration Motor |
| Motor Model No | DFF-N20 |
| Size(Dimensions) | D12*L30mm |
| Operating Voltage | 3V~30V DC |
| Speed RPM | 2000~15000 r/min-No Load |
| Motor Power Output | Approx 0.5W~1W |
| Typical Application | Sex Toy Neck Massager Healthcare & Personal Care Products |
| Shaft Length | Customized |
| Driver PCBA | Available |
| ITEM |
VALUE |
| Motor Type | Vibration Motor |

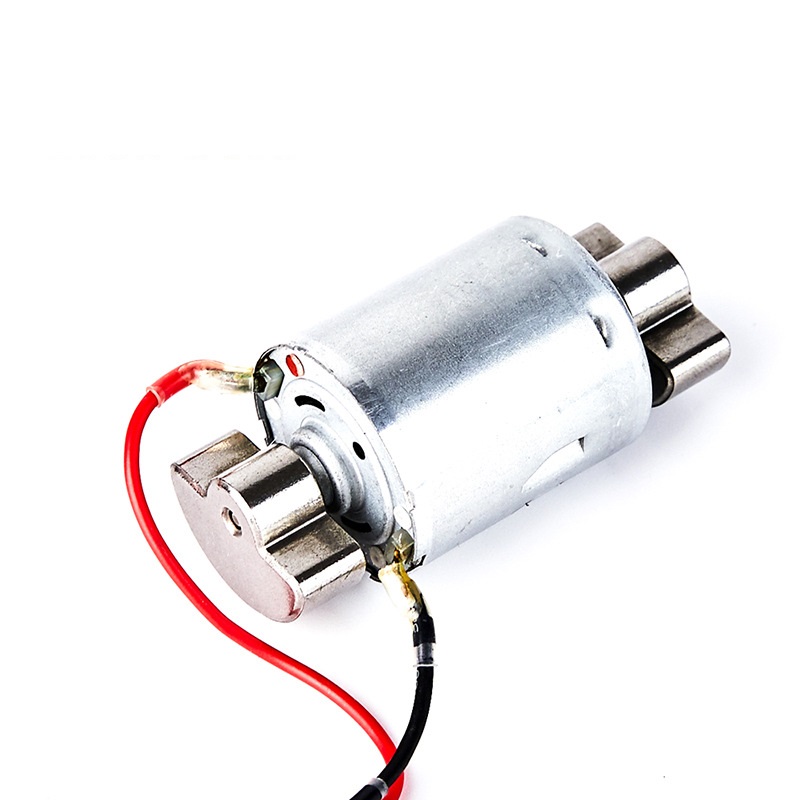

| Motor Model No | RS550 |
| Size(Dimensions) | D36*L57mm |
| Operating Voltage | 3V~24V DC |
| Speed RPM | 2000~10000 r/min-No Load |
| Motor Power Output | Approx 2W~10W |
| Typical Application | Sex Toy Neck Massager Healthcare & Personal Care Products |
| Shaft Length | Customized |
| Driver PCBA | Available |
Frequently Asked Questions
What are the typical applications for these vibration motors?
These motors are primarily used in personal care and healthcare products, such as neck massagers, adult products, and other devices requiring vibration feedback.
Can the shaft length of the motor be customized?
Yes, the shaft length for both DFF-N20 and RS550 models can be customized to meet your specific design requirements.
What is the operating voltage range for the DFF-N20 model?
The DFF-N20 vibration motor operates within a wide voltage range of 3V to 30V DC.
What is the difference in power output between the DFF-N20 and RS550?
The DFF-N20 is a compact motor with an output of 0.5W to 1W, while the larger RS550 model provides a higher power output ranging from 2W to 10W.
Do you provide Driver PCBA for these motors?
Yes, we can provide or support the integration of Driver PCBAs depending on the specific model and project needs.
What are the speed capabilities of these vibration motors?
The DFF-N20 reaches no-load speeds between 2000 and 15000 r/min, while the RS550 ranges from 2000 to 10000 r/min.
