12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
1 / 5
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation

12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation

Send Inquiry

Product Description

Product Description
Model Number FC-280SC-20150 Usage Car, Scanner
Type Micro Motor Certification ROHS
Voltage(V) 12V Output Power 4.5W
Speed(RPM) 11800rpm (At No load) Continuous Current(A) 0.1-5A
Torque 335G.CM AT STALL Construction Permanent Magnet
Commutation Brush Efficiency IE 1
Protect Feature Closed Rotation Reversible
Brush Type Carbon brushes End Cap Plastic End Cap
Packaging & Shipping
Packaging Details 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail Within 30 days
Technical Specifications
FC-280 DC Motor
Main Features
  • ROHS Certification
  • Permanent Magnet Construction
  • Plastic End Cap Design
  • Low Noise and Long Life
  • Application: Door Lock Actuator, Automotive Products
Product Gallery
12v dc car door lock motor

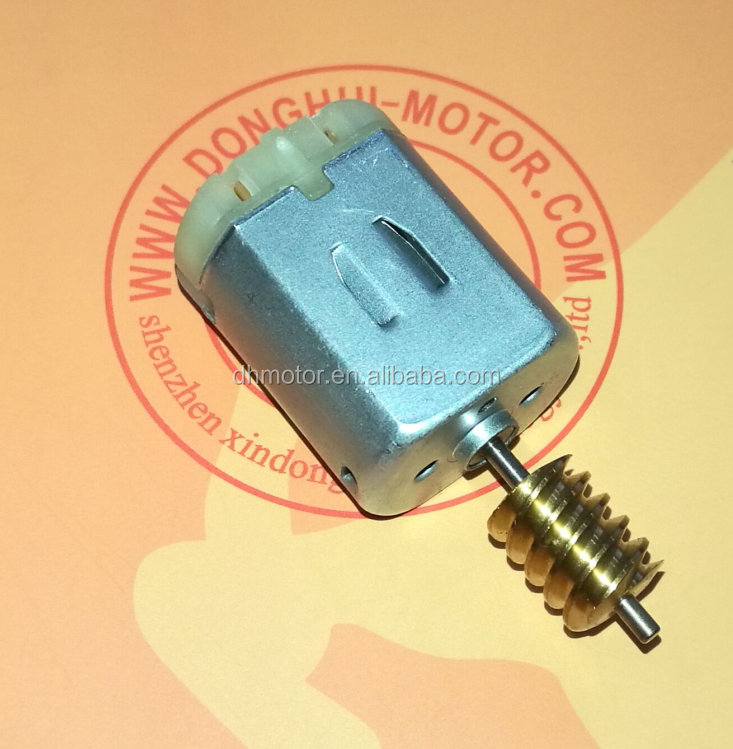

Micro motor construction

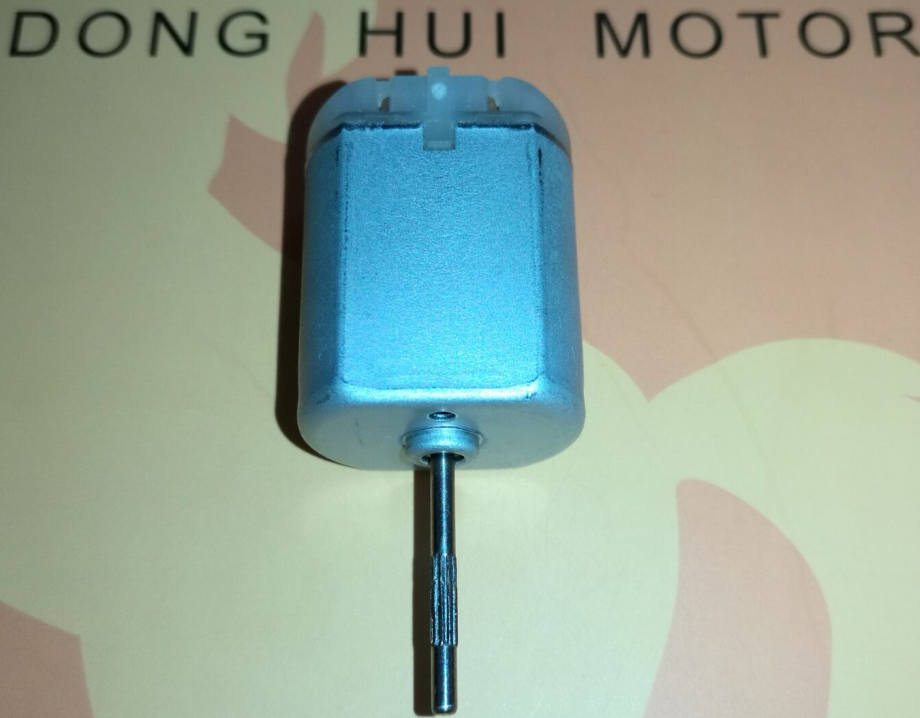

DC motor side view

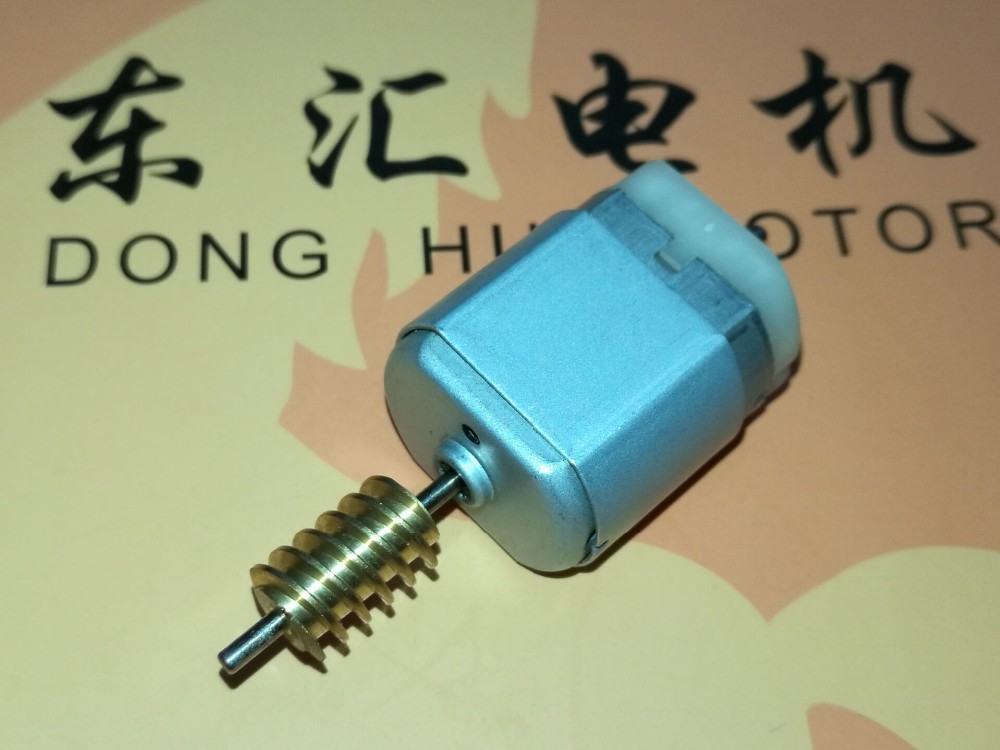

Production display 1
Production display 2

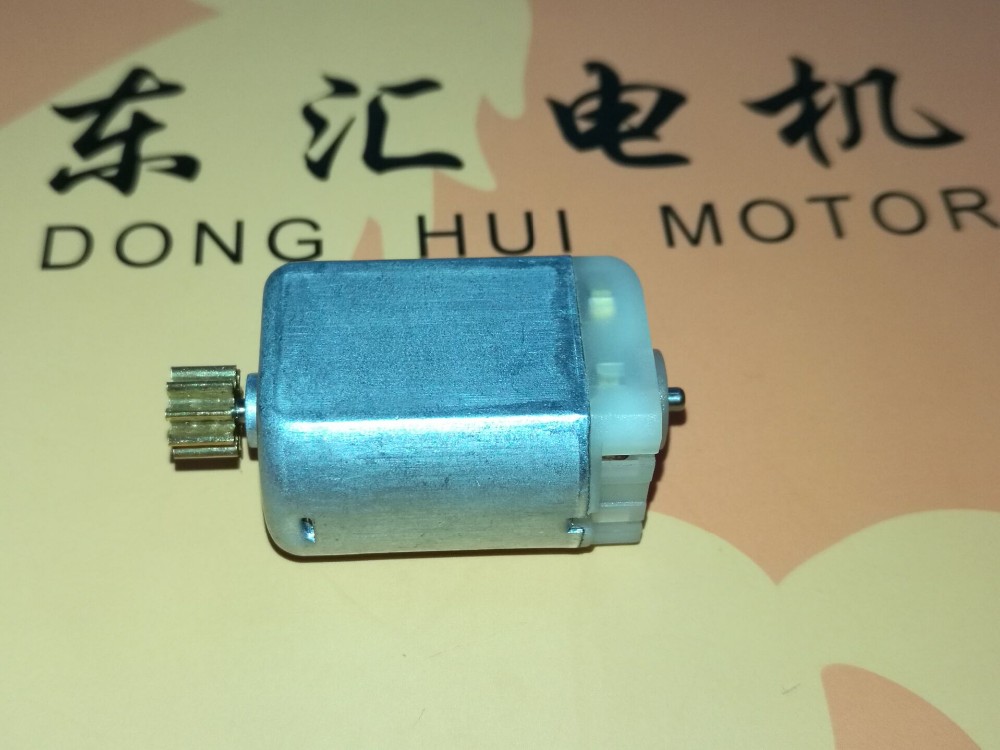

Production display 3
Production display 4

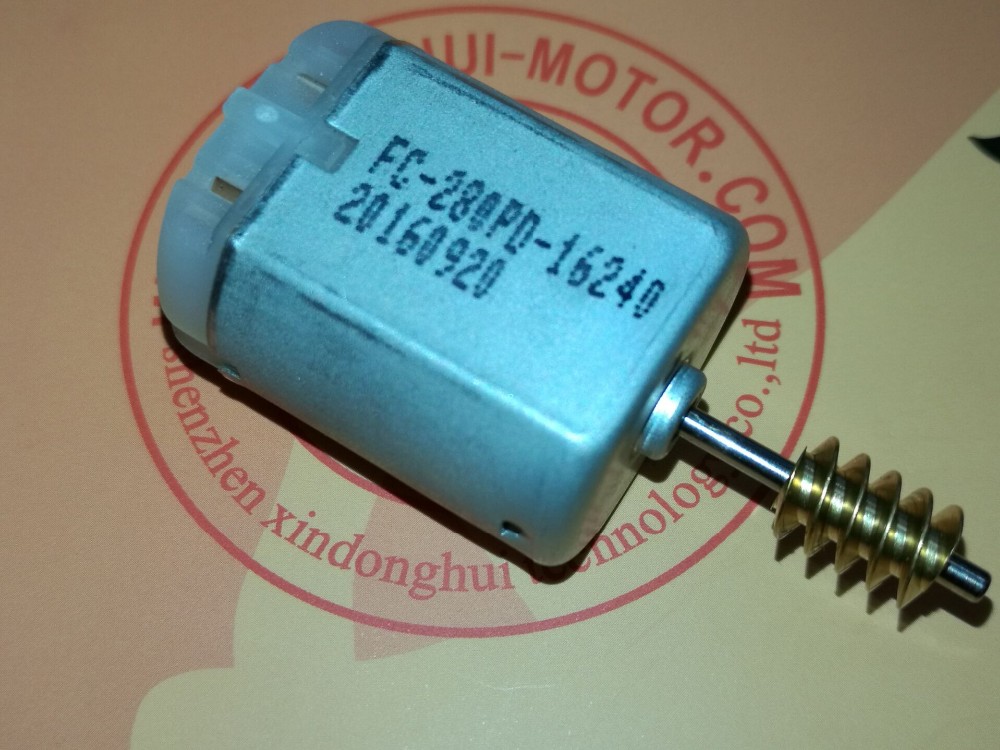

Production display 5

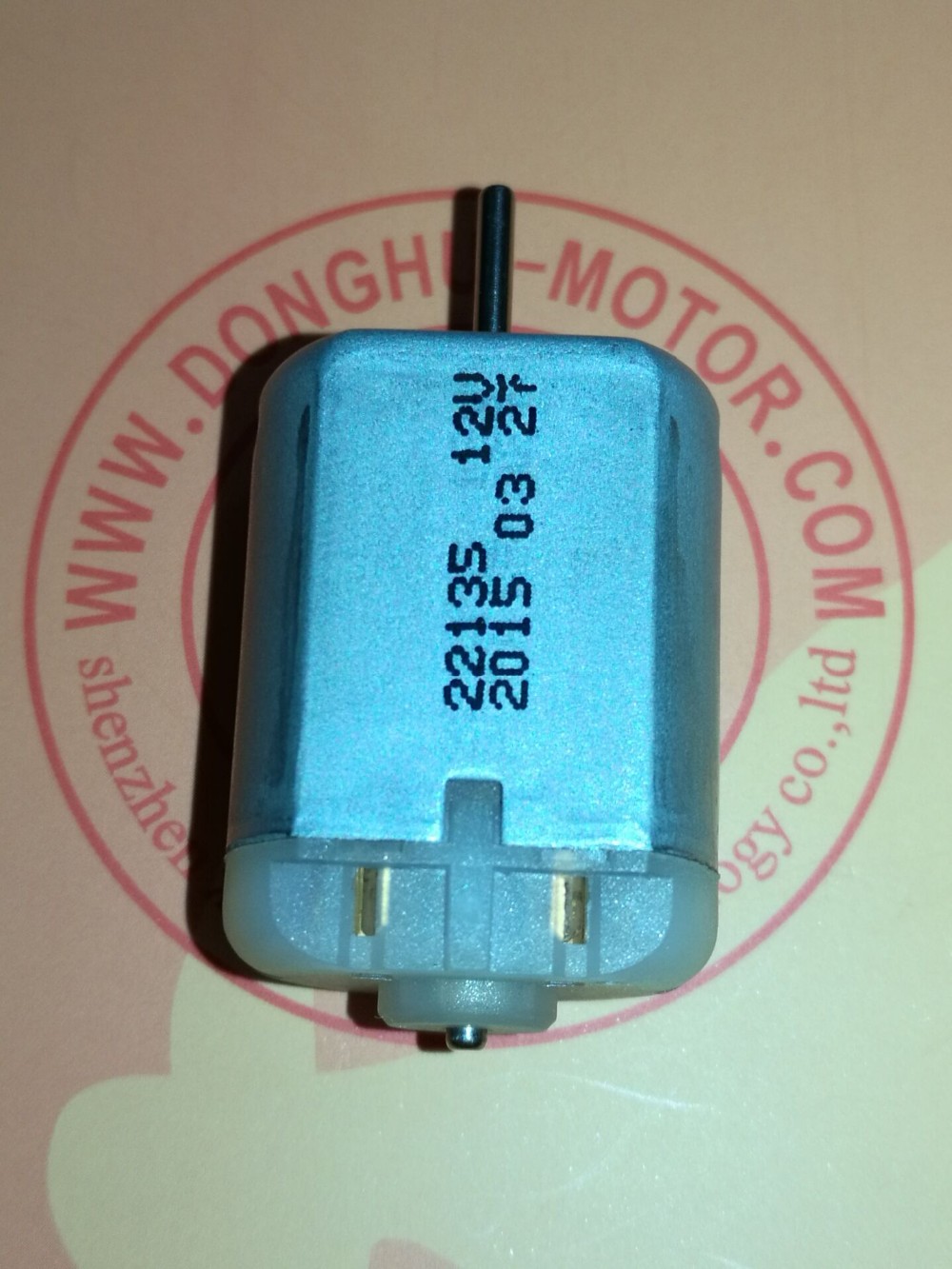

Production display 6
Outline Drawing & Parameters
Technical Drawing
Professional Micro Motor Solutions
Facility Image

Since the establishment in 2003, there has been a commitment to the development and production of micro motors across four major series: Micro DC motors, DC gear motors, coreless motors, and brushless motors.

Motor Varieties
  • Comprehensive range: Dia4~100mm DC Micro Motors.
  • Voltage versatility: DC 1.5V - 42V; AC rectify options (100V-240V).
  • Performance: Speeds from 1 RPM to 30,000 RPM.
  • Torque capacity: Stall torque ranging from 1g.cm to 30kg.cm.
  • Global Applications: Consumer electronics, medical equipment, power tools, automotive, and office automation.
Frequently Asked Questions
What are the primary applications for the FC-280SC motor?
This motor is specifically designed for automotive products like car door lock actuators and office equipment such as scanners.
Is this micro motor compliant with environmental standards?
Yes, the motor is ROHS certified, ensuring it meets strict international environmental and safety requirements.
Can the rotation direction of the motor be changed?
Yes, the FC-280SC is a reversible motor, allowing for both clockwise and counter-clockwise rotation as required by the application.
What is the typical lead time for an order?
The standard delivery time is generally within 30 days after order confirmation.
What kind of brushes does this motor use?
The motor utilizes high-quality carbon brushes to ensure stable performance and a long operational life.
What are the power and speed specifications?
At 12V DC, the motor provides a no-load speed of 11800rpm and an output power of approximately 4.5W.
